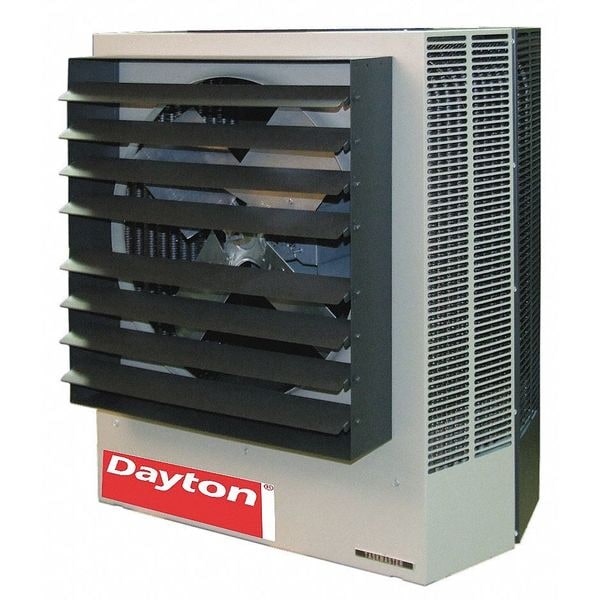

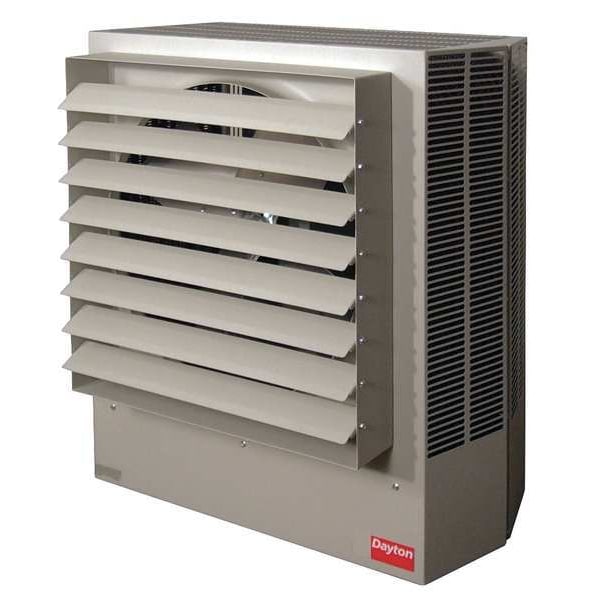

Fan Forced Electric Unit Heater, Wall & Ceiling, 3 Phase, 480VAC, 80kW, 39-1/2 in H, 37-1/2 in W
| Wattage Output | 80 kW |
|---|---|
| Heating Capacity | 273,000 BtuH |
| Voltage | 480VAC |
| Air Temp. Rise | 55°F |
| Air Flow | 5,000 cfm |
| Phase | 3 |
| Item | Electric Unit Heater |
| Amperage | 96.3A |
| Requires | Thermostat |
| Horizontal Air Throw | 65 ft |
| Housing Finish | Powder Coated |
| Mounting Type | Wall & Ceiling |
| Contactor Coil Voltage | 24V AC |
| Includes | Adjustable Louvers, Direct Wire with Hinged and Latched Access Door |
| Vertical Mounting H | 40 ft |
| Vertical Floor Coverage | 90 ft |
| Features | Totally Enclosed, Single Speed, Ball Bearing, Thermal Protected Fan Motor, Manual Reset Linear Thermal Protector |
| Standards | ETL Listed for US & Canada |
| Housing Material | Steel |
| Manufacturers Warranty Length | 1 yr |
| Overall Height | 39-1/2 in |
| Overall Width | 37-1/2 in |
| Housing Color | Brown |
| Control Type | Thermostat |
| Frequency | 60 Hz |
| Voltage, Phase | 480V AC, 3-phase |
| Heating Method | Fan Forced |
| Overall Depth | 18-1/2 in |
| Overall Dimensions - H x W x D | 39-1/2 in x 37-1/2 in x 18-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
