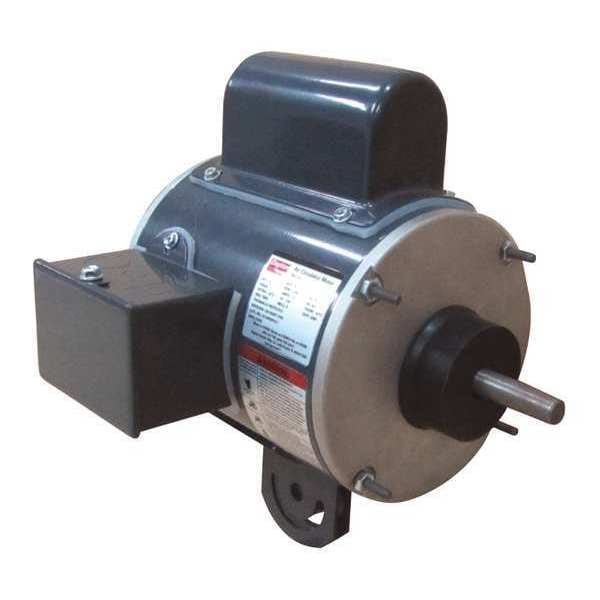

Fan Motor, HP1/2,208V
| Voltage | 208VAC |
|---|---|
| For Use With | HVAC/R |
| 10 Ft. Cord and Pull Chain Switch | No |
| Duty | Continuous |
| Ins. Class | B |
| Phase | Single |
| Frame | 48YZ |
| Motor Thermal Protection | Auto |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Application | 208V and Lighting Circuits |
| Hz | 60 |
| Motor Design | Permanent Split Capacitor |
| RPM Range | 1,001-1,100 |
| Standards | UL/CUL 507 |
| Overall Length | 9-5/8 in |
| Motor Application | HVAC, R |
| No. of Speeds | 1 |
| Motor Bearings | Ball |
| Shaft Length | 3 in |
| Motor Service Factor | 1 |
| Full Load Amps | 2.3 |
| Nameplate RPM | 1,100 |
| Motor Mounting Type | Yoke |
| Voltage Compatibility | 208V AC |
| Ambient Temperature | 104 deg F |
| Shaft Dia. | 1/2 in |
| Body Dia. | 5-11/16 in |
| HP | 1/2 |
| Motor Shaft Rotation | CWSE |
| Motor Sub Application | Pedestal Fan |
| Item | Pedestal Fan Motor |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
