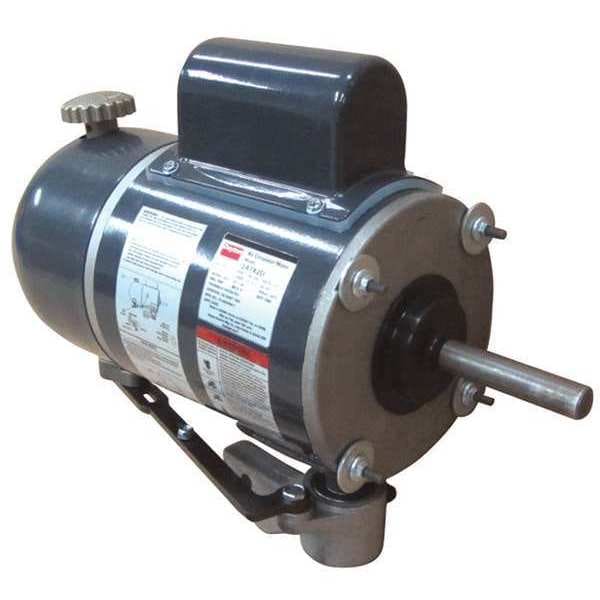

Fan Motor, HP1/4, 115V, 13-7/8in.L
| Voltage | 115VAC |
|---|---|
| For Use With | 277V and Lighting Circuits |
| Overall Length | 14-3/16 in |
| Application | Air Circulators Where Motor is Mounted Directly to Fan Column |
| Motor Sub Application | Direct Drive Fan/Blower |
| No. of Speeds | 2 |
| Hz | 60 |
| RPM Range | 1,001-1,100 |
| Motor Service Factor | 1 |
| Shaft Length | 3 in |
| Shaft Dia. | 1/2 in |
| Body Dia. | 5-11/16 in |
| Full Load Amps | 2.00 |
| Item | Oscillating Fan Motor |
| HP | 1/4 |
| Motor Thermal Protection | Auto |
| Motor Bearings | Ball |
| Motor Mounting Type | Yoke |
| Ambient Temperature | 40 deg C |
| Standards | UL/CUL 507 |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Application | HVAC, R |
| Ins. Class | B |
| Motor Shaft Rotation | CWSE |
| 10 Ft. Cord and Pull Chain Switch | Yes |
| Voltage Compatibility | 115V AC, 120V AC |
| Phase | Single |
| Duty | Continuous |
| Frame | 48YZ |
| Motor Design | Permanent Split Capacitor |
| Nameplate RPM | 1,100/850 |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
