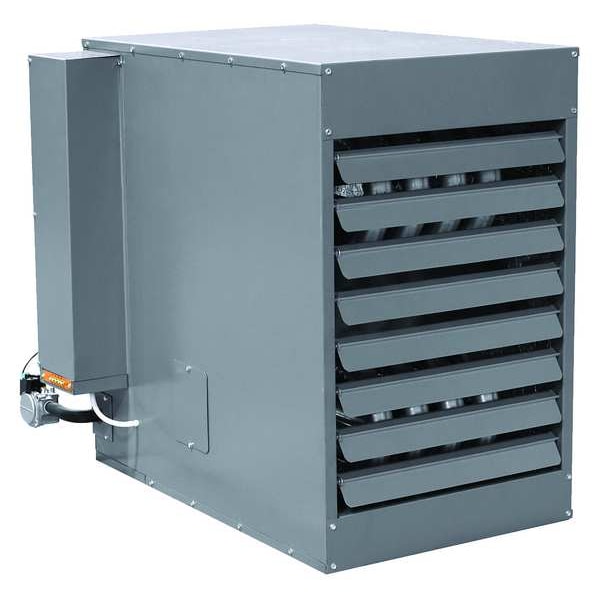

Gas Unit Heater, LP, 250,000, 3,450 cfm, Direct, Propeller, 3/4 in
| BtuH Input | 250,000 |
|---|---|
| Gas Type | LP |
| Combustion Type | Field Convertible |
| BtuH Output | 207,500 |
| Gas Connection | 3/4 in |
| Fan Type | Propeller |
| Air Flow | 3,450 cfm |
| Height | 33-3/4 in |
| Item | Gas Wall and Ceiling Unit Heater |
| Full Load Amps | 8.0 A |
| Drive Type | Direct |
| Primary Heat Exchanger Material | 20 ga Aluminized Steel |
| Manufacturers Warranty Length | 10 yr on Heat Exchanger, Burners, and Flue Collector, All Other Parts are 1 yr |
| Depth | 43-1/2 in |
| Installation Height | 8 to 20 ft |
| Vent | Power |
| Air Temp. Rise | 54 deg F |
| Width | 37-1/4 in |
| Ignition System | Direct Spark |
| Indoor Air Discharge Height | 24-1/2 in |
| Flue Dia. | 5 in |
| O.C. Mounting | 30-5/8 in |
| Indoor Air Discharge Width | 30-3/4 in |
| Heater Voltage | 115 V AC |
| Hz | 60 |
| Standards | ETL, ETLc Certified |
| Burner Air Inlet Size | 5 in |
| Includes | Adjustable Louvers |
| Air Flow Direction | Horizontal |
| Heating Capacity Input | 250,000 BtuH |
| Air Temperature Rise | 54 deg F |
| Overall Dimensions - H x W x D | 33-3/4 in x 37-1/4 in x 43-1/2 in |
| Thermal Efficiency Rating | 83% |
| Phase | 1 |
| Heat Exchanger Material | Aluminized Steel |
| Overall Width | 37-1/4 in |
| Vent Type | Power |
| Heating Method | Fan Forced |
| Mounting Hole Diameter | 3/4 in |
| Motor Type | PSC |
| Heat Output | 207,500 BtuH |
| Gas Connection Type | NPT, Male |
| Fan Diameter | 16 in |
| Maximum Amperage | 8 A |
| Heat Exchanger Gauge | 20 ga |
| Mounting Height | 8 ft to 20 ft |
| Fuel Type | Propane |
| Thermostat Included | No |
| Gas Connection Size | 3/4 in |
| Heating Capacity Output | 207,500 BtuH |
| Features | Power Vented Propeller Style Commercial Tubular Unit Heater Suitable For Standard or Separated Combustion Applications |
| Mounting Location | Ceiling |
| Fuel Type, Combustion Type | Field Convertible, Propane |
| Product Type | Standard-Profile Unit Heater |
| Overall Height | 33-3/4 in |
| Flue Diameter | 5 in |
| Motor Speed | 1,050 rpm |
| Overall Depth | 43-1/2 in |
| Profile Type | Standard |
| Ignition Type | Direct Spark |
| Off Center Mounting | 30-5/8 in |
| Frequency | 60 Hz |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
