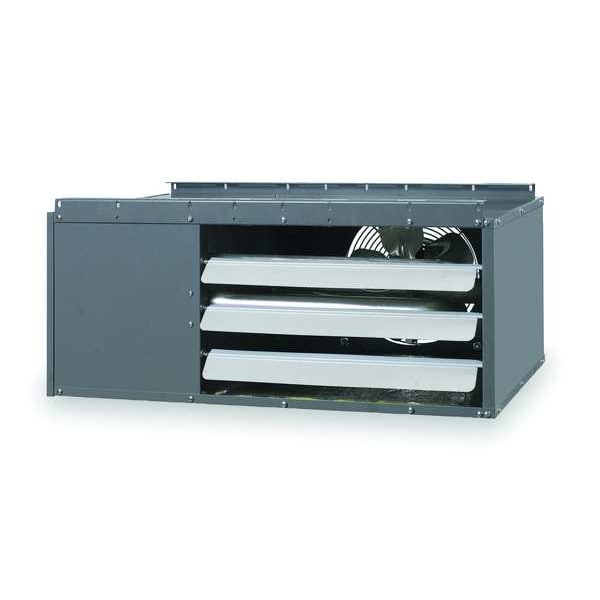

Gas Unit Heater, NG/LP, 75,000, 920 cfm, Direct, Propeller, 1/2 in
| BtuH Input | 75,000 |
|---|---|
| Gas Type | NG, LP |
| Combustion Type | Field Convertible |
| BtuH Output | 60,750 |
| Gas Connection | 1/2 in |
| Fan Type | Propeller |
| Air Flow | 920 cfm |
| Height | 15-7/8 in |
| Item | Gas Wall and Ceiling Unit Heater |
| Full Load Amps | 4.1 A |
| Vent | Power |
| Indoor Air Discharge Height | 15-7/8 in |
| Depth | 26-3/16 in |
| Air Temp. Rise | 60 deg F |
| Hz | 60 |
| Drive Type | Direct |
| Width | 30 in |
| Heater Voltage | 115 V AC |
| Flue Dia. | 4 in |
| O.C. Mounting | Adjustable |
| Burner Air Inlet Size | 4 in |
| Indoor Air Discharge Width | 30 in |
| Ignition System | Direct Spark |
| Manufacturers Warranty Length | 10 yr on Heat Exchanger, Burners, And Flue Collector. All Other Parts are 1 yr |
| Installation Height | 8 ft |
| Primary Heat Exchanger Material | 20 ga Aluminized Steel |
| Standards | ETL, ETLc Certified |
| Features | Power Venting Allows Horizontal Venting Through Side Walls or Vertical Venting, Tubular Heat Exchanger And Single Burner Design with Gas Conversion Kit Included |
| Overall Width | 30 in |
| Includes | LP Gas Conversion Kit |
| Overall Height | 15-7/8 in |
| Thermostat Included | No |
| Motor Type | SP |
| Phase | 1 |
| Air Flow Direction | Horizontal |
| Frequency | 60 Hz |
| Heat Exchanger Gauge | 20 ga |
| Gas Connection Type | NPT, Male |
| Overall Depth | 26-3/16 in |
| Fuel Type | Natural Gas, Propane |
| Flue Diameter | 4 in |
| Overall Dimensions - H x W x D | 15-7/8 in x 30 in x 26-3/16 in |
| Motor Speed | 1,050 rpm |
| Maximum Amperage | 4.1 A |
| Ignition Type | Direct Spark |
| Heat Output | 61,500 BtuH |
| Gas Connection Size | 1/2 in |
| Heat Exchanger Material | Aluminized Steel |
| Mounting Height | 8 ft to 10 ft |
| Profile Type | Low |
| Mounting Hole Diameter | 3/4 in |
| Thermal Efficiency Rating | 82% |
| Fan Diameter | 14 in |
| Air Temperature Rise | 60 deg F |
| Product Type | Low-Profile Unit Heater |
| Heating Capacity Input | 75,000 BtuH |
| Heating Method | Fan Forced |
| Mounting Location | Ceiling |
| Heating Capacity Output | 61,500 BtuH |
| Vent Type | Power |
| Fuel Type, Combustion Type | Field Convertible, Natural Gas, Propane |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
