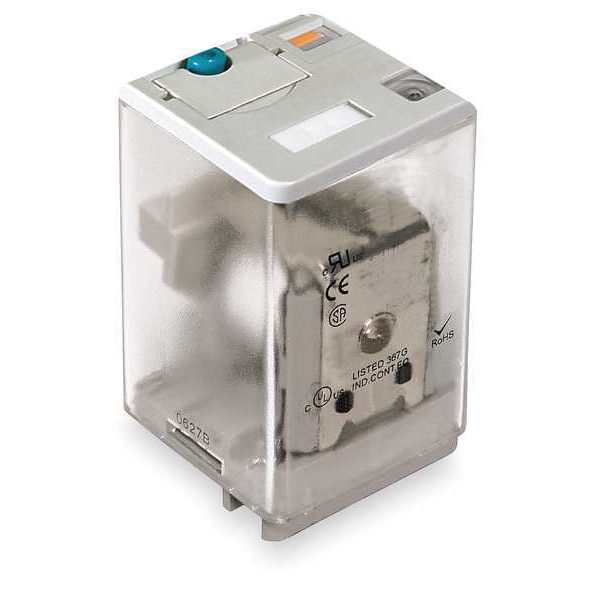

Relé de propósito general, 110V de voltaje de bobina de CC, cuadrado, 11 pines, 3PDT.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item - Relay | General Purpose Relay |
| Coil Volts | 110V DC |
| AC Contact Rating - Relay | 10A @ 277V |
| DC Contact Rating - Relay | 10 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 11 |
| Contact Form - Relay | 3PDT |
| Mounting - Relay | Plug In |
| HP @ 120V | 1/3 hp |
| Item | General Purpose Relay |
| Contact Rating | 10A @ 277VAC/30VDC |
| Push To Test | Lockable |
| HP @ 240V | 1/2 hp |
| Body Height - Relay | 2.1 in |
| Socket Code | C |
| Status Indicator | Mechanical Flag, LED Indicator |
| Standards | E40944 |
| Overall Height - Relay | 2.59 in |
| Body Width - Relay | 1.37 in |
| Contact Form | 3PDT |
| Power Consumption - Relay | 3 W |
| Socket | 5X853, 1ERG3 |
| Body Depth - Relay | 1.4 in |
| Contact Material | Silver Alloy |
| Pins | 11 |
| Base Type | Square |
| Body Depth | 1.4 in |
| Contact Rating (AC) | 10 A @ 277V |
| Motor Rated | Yes |
| Mounting Style | Plug-In |
| Power Consumption | 3 W |
| Body Height | 2.1 in |
| Coil Voltage | 110 V DC |
| Series | C Series |
| Current Rating | 10 A |
| Overall Depth | 2.59 in |
| Base Shape | Square |
| Number of Pins | 11 |
| Horsepower @ 240V AC | 0.5 HP |
| Push-To-Test Method | Lockable |
| Body Width | 1.37 in |
| Horsepower @ 120V AC | 1/3 hp |
| Contact Rating (DC) | 10 A @ 28 V |
| Package Quantity | 1 |
