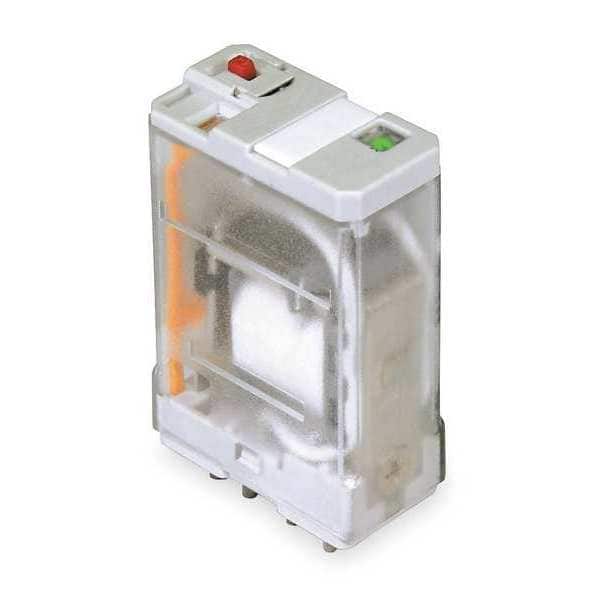

Relé de propósito general, 120V AC Voltios de bobina, cuadrado, 5 pines, SPDT.
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item - Relay | General Purpose Relay |
| Coil Volts | 120V AC |
| AC Contact Rating - Relay | 15A @ 120/277V |
| DC Contact Rating - Relay | 15 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 5 |
| Contact Form - Relay | SPDT |
| Mounting - Relay | Plug In |
| HP @ 120V | 1/2 hp |
| Socket Code | L |
| Contact Material | Silver Alloy |
| Contact Rating | 20A @ 277VAC/28VDC |
| Push To Test | Lockable |
| Body Depth - Relay | 1.1 in |
| Body Width - Relay | 0.53 in |
| Pins | 5 |
| Features | Max. Switching Voltage 300V AC |
| Standards | E40944 |
| Socket | 1EGP6 |
| Item | General Purpose Relay |
| Overall Height - Relay | 1.95 in |
| Base Type | Square |
| HP @ 240V | 1 hp |
| Contact Form | SPDT |
| Power Consumption - Relay | 0.9 VA |
| Status Indicator | Mechanical Flag, LED Indicator |
| Body Height - Relay | 1.6 in |
| Mounting Style | Plug-In |
| Body Height | 1.6 in |
| Contact Rating (AC) | 15 A @ 120/277V |
| Power Consumption | 0.9 VA |
| Push-To-Test Method | Lockable |
| Horsepower @ 240V AC | 1 HP |
| Body Width | 0.53 in |
| Number of Pins | 5 |
| Base Shape | Square |
| Coil Voltage | 120 V AC |
| Motor Rated | Yes |
| Horsepower @ 120V AC | 1/2 hp |
| Body Depth | 1.1 in |
| Current Rating | 15 A |
| Series | L Series |
| Overall Depth | 1.95 in |
| Contact Rating (DC) | 15 A @ 28 V |
| Package Quantity | 1 |
