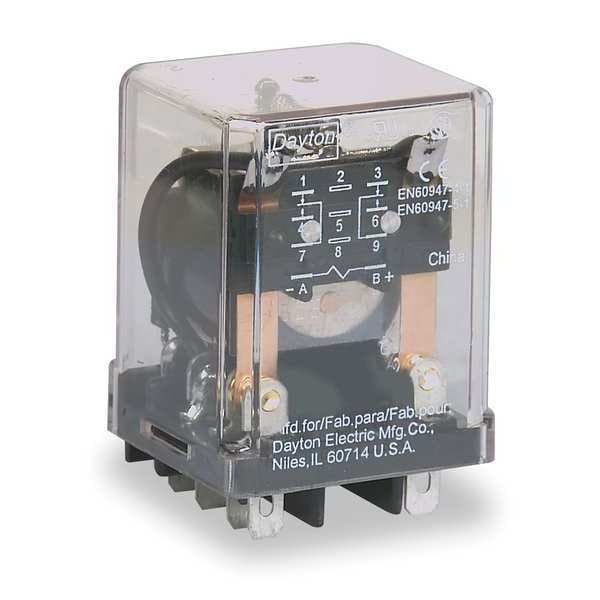

Relevador de propósito general, 12 voltios de bobina de corriente continua, cuadrado, 8 pines, DPDT
| Item | General Purpose Relay |
|---|---|
| Item - Relay | General Purpose Relay |
| Coil Volts | 12V DC |
| AC Contact Rating - Relay | 10A @ 300V |
| DC Contact Rating - Relay | 10 A @ 28 V |
| Base Type - Plug In Relay | Square |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| Power Consumption - Relay | 1.2 W |
| HP @ 120V | 1/3 hp |
| Body Height - Relay | 1.9 in |
| Body Width - Relay | 1.4 in |
| Body Depth - Relay | 1.53 in |
| Overall Height - Relay | 2.15 in |
| Standards | E40944 |
| Push To Test | No |
| Socket Code | C |
| HP @ 240V | 1/2 hp |
| Pins | 8 |
| Status Indicator | None |
| Socket | 5X853 |
| Contact Form | DPDT |
| Contact Rating | 10A @ 300VAC/28VDC |
| Base Type | Square |
| Mounting Style | Plug-In |
| Base Shape | Square |
| Contact Rating (AC) | 10 A @ 300V |
| Number of Pins | 8 |
| Body Depth | 1.53 in |
| Motor Rated | Yes |
| Contact Rating (DC) | 10 A @ 28 V |
| Series | C Series |
| Overall Depth | 2.15 in |
| Coil Voltage | 12 V DC |
| Power Consumption | 1.2 W |
| Horsepower @ 240V AC | 0.5 HP |
| Body Height | 1.9 in |
| Horsepower @ 120V AC | 1/3 hp |
| Current Rating | 10 A |
| Body Width | 1.4 in |
| Push-To-Test Method | No Button |
| Package Quantity | 1 |
