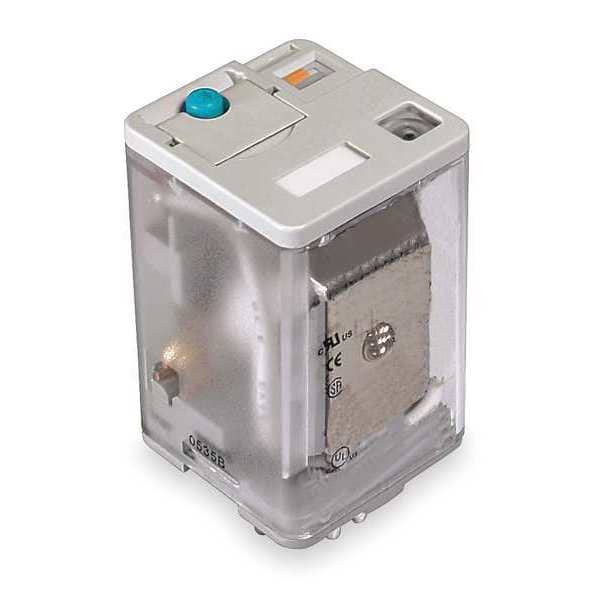

Relevador de uso general, 24V en bobina de voltaje de CA, Octal, 8 pines, DPDT
| Promotion Restriction | Not eligible for promotion |
|---|---|
| HP @ 240V | 1/2 hp |
| Base Type - Plug In Relay | Octal |
| Overall Height - Relay | 2.95 in |
| Power Consumption - Relay | 3 VA |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| AC Contact Rating - Relay | 10A @ 277V |
| Base Type | Octal |
| Mounting - Relay | Plug In |
| DC Contact Rating - Relay | 10 A @ 28 V |
| Item - Relay | General Purpose Relay |
| Status Indicator | Mechanical Flag, LED Indicator |
| Push To Test | Lockable |
| Body Height - Relay | 2.2 in |
| Body Width - Relay | 1.4 in |
| HP @ 120V | 1/3 hp |
| Pins | 8 |
| Contact Form | DPDT |
| Socket Code | A |
| Item | General Purpose Relay |
| Coil Volts | 24V AC |
| Standards | E40944 |
| Contact Rating | 10A @ 277VAC/30VDC |
| Socket | 5X852, 1EGP3, 1EGP5 |
| Contact Material | Silver Alloy |
| Body Depth - Relay | 1.4 in |
| Body Width | 1.4 in |
| Body Depth | 1.4 in |
| Contact Rating (AC) | 10 A @ 277V |
| Power Consumption | 3 VA |
| Mounting Style | Plug-In |
| Overall Depth | 2.95 in |
| Base Shape | Octal |
| Series | A Series |
| Coil Voltage | 24 V AC |
| Push-To-Test Method | Lockable |
| Number of Pins | 8 |
| Horsepower @ 240V AC | 0.5 HP |
| Horsepower @ 120V AC | 1/3 hp |
| Motor Rated | Yes |
| Body Height | 2.2 in |
| Current Rating | 10 A |
| Contact Rating (DC) | 10 A @ 28 V |
| Package Quantity | 1 |
