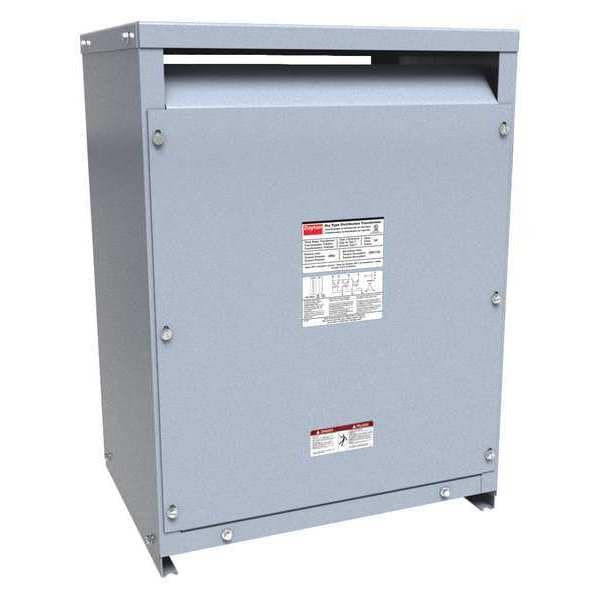

General Purpose Transformer, 45 kVA, NEMA 2, 150°C, 120/240V, 480V AC
| Item | General Purpose Transformer |
|---|---|
| Input Voltage - Transformer | 480V AC |
| Mounting - Transformer | Floor |
| Hz - Electrical | 60 |
| IP Rating | IP54 |
| Outdoor Rated - Transformer | No |
| Winding Material | Aluminum |
| Color | Gray |
| VA Rating - Transformer | 45 kVA |
| Output Voltage - Transformer | 120/240V |
| Enclosure Rating | NEMA 2 |
| Width | 23 in |
| Temp. Rise | 150 deg C |
| Standards | DOE 2016 Compliant, RoHS, UL Listed |
| Height | 30 in |
| Knockout Size - Transformer | No Knockout |
| Enclosure Finish | Powder Coated |
| Depth | 16-1/2 in |
| Enclosure Material | Steel |
| Phase - Electrical | 3 |
| Voltage Function - Transformer | Step Down, Step Up |
| Winding Material - Transformer | Aluminum |
| Includes | Not Applicable |
| Includes Knockouts | No Knockouts |
| Sound Level | 45 dB |
| Package Quantity | 1 |
