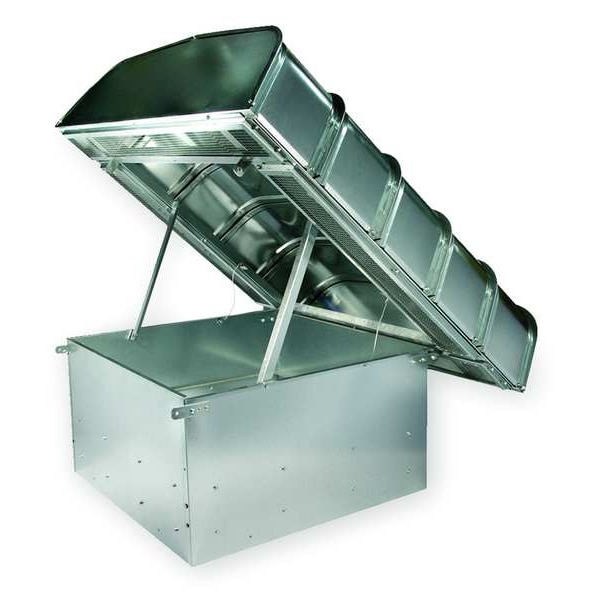

Gravity Vent, 60 In, Base 66 1/2 In Sq
| Item - Roof Ventilators | Gravity Ventilator |
|---|---|
| Style - Roof Ventilators | Low Profile |
| Blade Dia. | 60 in |
| Base Size - Roof Ventilators | 60-1/2 in x 60-1/2 in |
| CFM/Throat Velocity @ 0.050-In. SP Gravity Relief | 14,716/509 |
| CFM/Throat Velocity @ 0.050-In. SP Gravity Intake | 13,204/457 |
| CFM/Throat Velocity @ 0.250-In. SP Gravity Relief | 32,907/1139 |
| CFM/Throat Velocity @ 0.250-In. SP Gravity Intake | 28,733/994 |
| Max. Intake CFM/Throat Velocity | 24,660/853 |
| CFM/Throat Velocity @ 0.200-In. SP Gravity Relief | 29,433/1018 |
| Dimension G | 14-1/2 in |
| Recommended 12 3/8"H Roof Curb Item No. | 2ZV87 |
| CFM/Throat Velocity @ 0.100-In. SP Gravity Relief | 20,811/720 |
| Dimension C | 108 in |
| Damper Size (In.) | 61 x 61 |
| Dimension C (In.) | 108 |
| Dimension A | 66-1/2 in |
| Dimension F | 24 in |
| CFM/Throat Velocity @ 0.125-In. SP Gravity Relief | 23,268/805 |
| Dimension B | 100 in |
| Construction Material | Galvanized Steel |
| Dimension E (In.) | 30-1/2 |
| CFM/Throat Velocity @ 0.125-In. SP Gravity Intake | 20,317/703 |
| Dimension D | 54-1/2 in |
| CFM/Throat Velocity @ 0.100-In. SP Gravity Intake | 18,172/629 |
| Fan Size (In.) | 60 |
| Base Length (In.) | 60-1/2 |
| Dimension B (In.) | 100 |
| Dimension A (In.) | 66-1/2 |
| Dimension G (In.) | 14-1/2 |
| Dimension E | 30-1/2 in |
| Dimension H | 16 in |
| Dimension H (In.) | 16 |
| Base Width (In.) | 60-1/2 |
| Dimension F (In.) | 24 |
| Recommended 12 In. Fixed Curb Item No. | 3AZJ8 |
| CFM/Throat Velocity @ 0.200-In. SP Gravity Intake | 25,699/889 |
| Depth (In.) | 108 |
| Width (In.) | 100 |
| Overall Height (In.) | 54-1/2 |
| Dimension D (In.) | 54-1/2 |
| Recommended Gravity Backdraft Damper Item No. | 6WRK9 |
| Item | Roof Vent Hood |
| Includes | Birdscreen |
| Overall Length | 100 in |
| Overall Height | 54-1/2 in |
| Overall Width | 100 in |
| Maximum Inlet Air Temperature | 104 Degrees F |
| Assembly | Unassembled |
| Supply Airflow @ 0.125 in SP | 20,317 cfm |
| Exhaust Airflow @ 0.100 in SP | 20,811 cfm |
| Housing Length | 66-1/2 in |
| Damper Size | 61 in x 61 in |
| Number of Filters | 0 |
| Ventilation Type | Exhaust, Supply |
| Supply Airflow @ 0.100 in SP | 18,172 cfm |
| Housing Finish | Galvanized |
| Housing Width | 66-1/2 in |
| Hood Height | 24 in |
| Housing Material | Steel |
| Hood Type | Hinged Hood |
| Cutout Width | 63-1/2 in |
| Hood Width | 108 in |
| Exhaust Airflow @ 0.125 in SP | 23,268 cfm |
| Base Length | 60-1/2 in |
| Base Width | 60-1/2 in |
| Mount Type | Roof Curb |
| Supply Airflow @ 0.250 in SP | 28,733 cfm |
| Base Height | 30-1/2 in |
| Hood Length | 100 in |
| Airflow @ Static Pressure | 13,204 cfm @ 0.050 in SP (Gravity Intake), 14,716 cfm @ 0.050 in SP (Gravity Relief), 18,172 cfm @ 0.100 in SP (Gravity Intake), 20,317 cfm @ 0.125 in SP (Gravity Intake), 20,811 cfm @ 0.100 in SP (Gravity Relief), 23,268 cfm @ 0.125 in SP (Gravity Relief), 25,699 cfm @ 0.200 in SP (Gravity Intake), 28,733 cfm @ 0.250 in SP (Gravity Intake), 29,433 cfm @ 0.200 in SP (Gravity Relief), 32,907 cfm @ 0.050 in SP (Gravity Relief) |
| Cutout Length | 63-1/2 in |
| Exhaust Airflow @ 0.250 in SP | 32,907 cfm |
| For Air Type | Clean Air |
| Maximum Airflow | 24,660 cfm |
| Blade Diameter | 60 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
