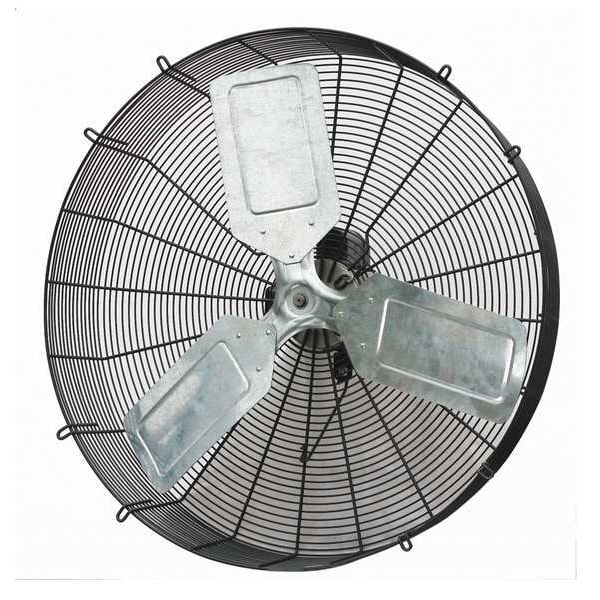

Guard Mounted Exhaust Fan, 30 in. Dia.
| Item | Guard-Mounted Exhaust Fan |
|---|---|
| Drive Package Included | No |
| Hz | 60 |
| Operating Amps | 3.1 |
| Blade Dia. | 30 in |
| Blade Material | Steel |
| Motor RPM | 843 RPM |
| Wire Guard Finish | Gray Polyester |
| Guard Material | Steel |
| Sones @ 0.000-In. SP @ 5 Ft. | 7.2 |
| CFM @ 0.125-In. SP | 3,508 cfm |
| Standards | UL/cUL UL705 E53236 |
| Motor Type | 3-Phase |
| Phase | 1 |
| Max. Depth | 13-1/2 in |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Motor Enclosure | Totally Enclosed Air Over |
| Outside Dia. | 33 in |
| Exhaust/Supply Fan Motor HP | 1/3 hp |
| Motor Insulation | Class B |
| Mounting Position | Horizontal or Vertical |
| Thermal Protection | Auto |
| Number of Blades | 3 |
| Max. Ambient Temp. | 104 Degrees F |
| CFM @ 0.000-In. SP | 5,472 cfm |
| Bearing Type | Ball |
| Mounting Holes O.C. | 18 3/4 in x 28 in |
| Fan Voltage | 115V AC |
| Includes | Wiring, Junction Box, and Leads |
| Voltage | 115 |
| Includes Motor | Yes |
| Overall Diameter | 33 in |
| Duct Height | Not Applicable |
| Noise Level @ 0.000 in SP @ 5 ft | 7.2 sones |
| Overall Depth | 13-1/2 in |
| Guard Finish | Polyester |
| Maximum Noise Level | 7.2 sones |
| Blade Diameter | 30 in |
| Duct Diameter | Not Applicable |
| Duct Shape | Not Applicable |
| Motor Speed | 843 RPM |
| Nameplate Voltage | 115 V AC |
| Motor Horsepower | 0.3333 HP |
| Exhaust Airflow @ 0.125 in SP | 3,508 cfm |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Fan Style | Guard-Mounted |
| Duct Width | Not Applicable |
| Ventilation Type | Exhaust |
| Mounting Orientation | Vertical, Horizontal |
| Exhaust Airflow @ 0.000 in SP | 5,472 cfm |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
