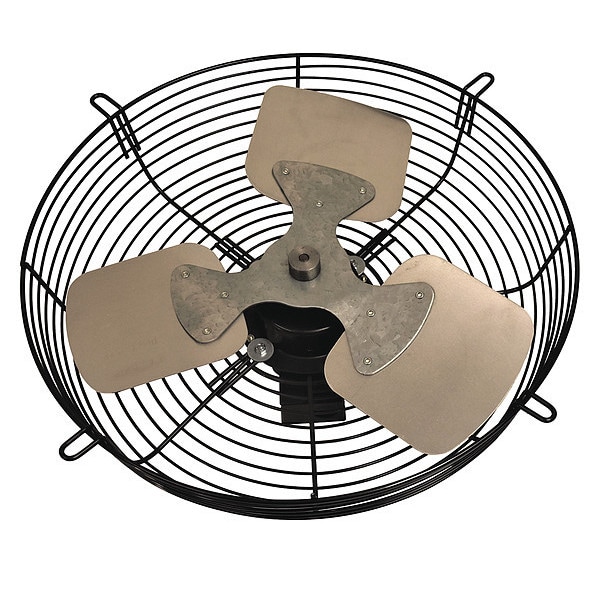

Guard Mounted Exhaust Fan, Blade 16" Dia.
| Item | Guard-Mounted Exhaust Fan |
|---|---|
| Fan Voltage | 115V AC |
| Max. Ambient Temp. | 104 Degrees F |
| Includes | Intake Guard |
| Motor Insulation | Class B |
| Mounting Holes O.C. | 12-29/32 in |
| Motor Type | Permanent Split Capacitor |
| Motor Enclosure | Totally Enclosed Air Over |
| Phase | 1 |
| CFM @ 0.000-In. SP | 1,280 cfm |
| Thermal Protection | Yes |
| Sones @ 0.000-In. SP @ 5 Ft. | 6.1 |
| Wire Guard Finish | Black Powder Coated |
| Blade Material | Aluminum |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Standards | OSHA Compliant |
| Blade Dia. | 16 in |
| Outside Dia. | 17-5/8 in |
| Hz | 60 |
| Guard Material | Steel |
| Bearing Type | Ball |
| Mounting Position | Horizontal or Vertical |
| Max. Depth | 6 in |
| CFM @ 0.125-In. SP | 540 cfm |
| Operating Amps | 1 |
| Exhaust/Supply Fan Motor HP | 1/10 hp |
| Number of Blades | 3 |
| Motor RPM | 1,550 RPM |
| Frame Material | Steel |
| Frame Finish | Powder Coated |
| Exhaust Airflow @ 0.125 in SP | 540 cfm |
| For Minimum Wall Thickness | 3 in |
| Overall Diameter | 17-5/8 in |
| Housing Finish | Powder-Coated |
| Duct Shape | Not Applicable |
| Nameplate Voltage | 115 V AC |
| Maximum Coverage Area | 350 sq ft |
| Includes Motor | Yes |
| Duct Width | Not Applicable |
| Duct Height | Not Applicable |
| Motor Speed | 1,550 rpm |
| Ventilation Type | Exhaust |
| Guard Finish | Powder Coated |
| Speed Controllable | Yes |
| Wattage | 103 W |
| Housing Material | Steel |
| Ring-Mount Style | Flange |
| Guard Type | Intake |
| Overall Depth | 6 in |
| Noise Level @ 0.100 in SP @ 5 ft | 6.04 sones |
| Blade Diameter | 16 in |
| Includes Dehumidistat | No |
| Fan Style | Guard-Mounted |
| Maximum Noise Level | 6.1 sones |
| Noise Level @ 0.000 in SP @ 5 ft | 6.1 sones |
| Exhaust Airflow @ 0.000 in SP | 1,280 cfm |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Assembled | Assembled |
| Duct Diameter | Not Applicable |
| Number of Fans | 1 |
| Number of Speeds | 1 |
| Exhaust Airflow @ 0.100 in SP | 873 cfm |
| Overall Width | 18 in |
| Electrical Connection | Hardwired |
| For Maximum Wall Thickness | 6 in |
| Motor Horsepower | 0.1 HP |
| Drive Type | Direct Drive |
| Mounting Orientation | Vertical, Horizontal |
| Frequency | 60 Hz |
| Overall Height | 18 in |
| Maximum Airflow | 1,280 cfm |
| Full Load Current | 1 A |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
