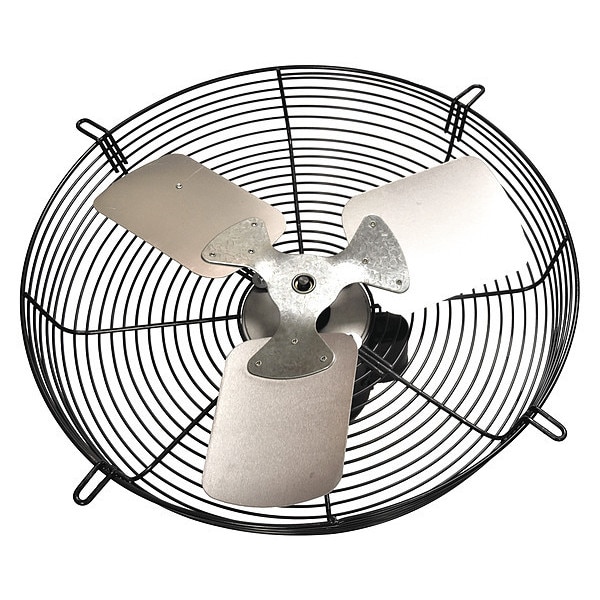

Guard Mounted Exhaust Fan, Blade 20" Dia.
| Item | Guard-Mounted Exhaust Fan |
|---|---|
| Thermal Protection | Yes |
| Blade Dia. | 20 in |
| Number of Blades | 3 |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Bearing Type | Ball |
| Max. Depth | 10 in |
| Blade Material | Aluminum |
| Operating Amps | 2.75 |
| CFM @ 0.000-In. SP | 3,960 cfm |
| Wire Guard Finish | Black Powder Coated |
| Sones @ 0.000-In. SP @ 5 Ft. | 7.3 |
| CFM @ 0.125-In. SP | 2,360 cfm |
| Phase | 1 |
| Motor Insulation | Class B |
| Hz | 60 |
| Outside Dia. | 21-5/8 in |
| Motor Enclosure | Totally Enclosed Air Over |
| Max. Ambient Temp. | 104 Degrees F |
| Guard Material | Steel |
| Fan Voltage | 115V AC |
| Motor RPM | 1,725 RPM |
| Mounting Holes O.C. | 16-3/4 in |
| Standards | OSHA Compliant |
| Includes | Intake Guard |
| Mounting Position | Horizontal or Vertical |
| Motor Type | Permanent Split Capacitor |
| Exhaust/Supply Fan Motor HP | 1/4 hp |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Ventilation Type | Exhaust |
| Noise Level @ 0.000 in SP @ 5 ft | 7.3 sones |
| Duct Height | Not Applicable |
| Noise Level @ 0.100 in SP @ 5 ft | 7.22 sones |
| Includes Dehumidistat | No |
| Guard Finish | Powder Coated |
| Overall Depth | 10 in |
| Number of Speeds | 1 |
| Fan Style | Guard-Mounted |
| Electrical Connection | Hardwired |
| Exhaust Airflow @ 0.000 in SP | 3,960 cfm |
| Housing Finish | Powder-Coated |
| Includes Motor | Yes |
| Housing Material | Steel |
| Overall Height | 22 in |
| Nameplate Voltage | 115 V AC |
| Ring-Mount Style | Flange |
| Motor Horsepower | 0.25 HP |
| Speed Controllable | Yes |
| Maximum Noise Level | 7.3 sones |
| Overall Width | 22 in |
| Blade Diameter | 20 in |
| Frequency | 60 Hz |
| Number of Fans | 1 |
| Exhaust Airflow @ 0.100 in SP | 2,602 cfm |
| Maximum Airflow | 3,960 cfm |
| Wattage | 325 W |
| Maximum Coverage Area | 900 sq ft |
| Duct Shape | Not Applicable |
| Assembled | Assembled |
| Duct Width | Not Applicable |
| Mounting Orientation | Vertical, Horizontal |
| Guard Type | Intake |
| Motor Speed | 1,725 rpm |
| For Minimum Wall Thickness | 3 in |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Overall Diameter | 21-5/8 in |
| Drive Type | Direct Drive |
| Duct Diameter | Not Applicable |
| Full Load Current | 2.75 A |
| For Maximum Wall Thickness | 6 in |
| Exhaust Airflow @ 0.125 in SP | 2,360 cfm |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
