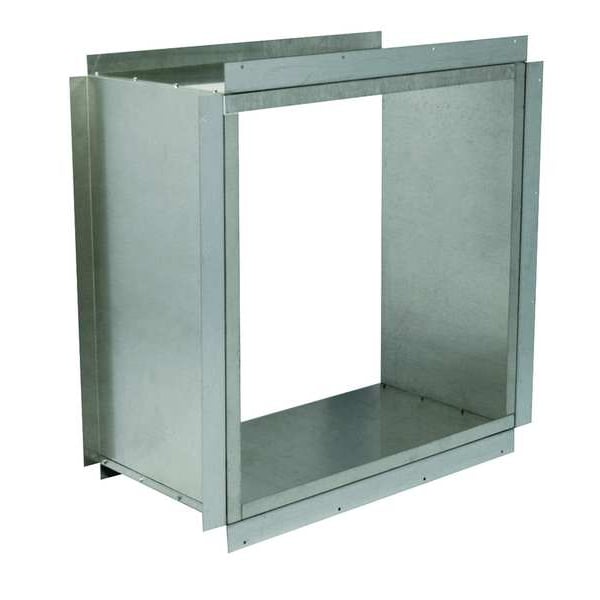

HD Wall Collar, 48 In, Galvanized Steel
| Item | Heavy Duty Wall Collar |
|---|---|
| For Fan Dia. (In.) | 48 |
| Construction | 16 Gauge (Galvanized Steel) |
| Application | Provides Ease of Installation When Mounting Exhaust or Supply Fans Vertically |
| Material | Steel |

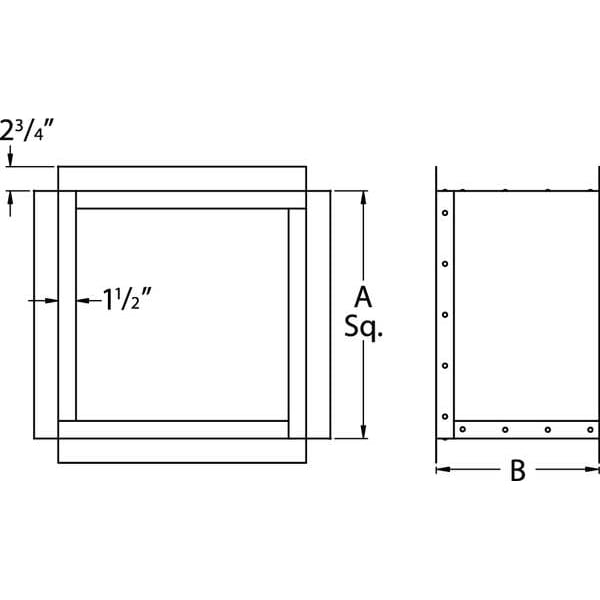

| Dimension B (In.) | 23-1/2 |
| Height (In.) | 54-3/8 |
| Depth (In.) | 23-1/2 |
| Width (In.) | 54-1/4 |
| Gauge | 16 |
| Dimension A (In.) | 54-3/8 |
| For Cut-Out Width | 55-5/8 in |
| Thickness | 16 ga |
| Finish | Galvanized |
| For Cut-Out Height | 55-5/8 in |
| Includes | (4) Mounting Angle, (4) Side Panel |
| Overall Width | 54-1/4 in |
| For Blade Diameter | 48 in |
| Overall Depth | 23-1/2 in |
| Overall Height | 54-1/2 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
