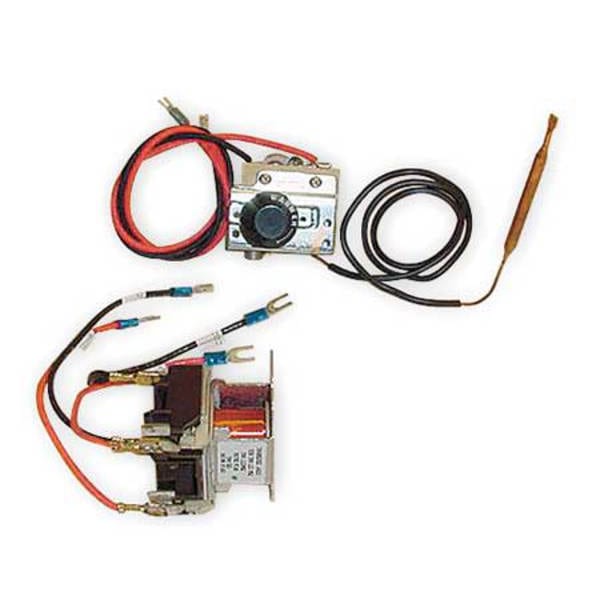

Heat Recovery Thermostat, SPST
| Mounting Type | Unit Mounted |
|---|---|
| Switch Type | SPST |
| Phase | 1 |
| Amps AC | 25 A |
| Fits KW | All Except 5KW; 3-Phase |
| Hz | 60 |
| Includes | Mounting Hardware |
| For Use With | All Dayton(R) Unit Heaters Except 2YU58, 2YU60, 2YU61, 2YU64, 4TDH6, 4TDH7, 4TDH8, 4TDH9, 4TDJ1, 4TDJ2 |
| Item | Electric Wall & Ceiling Heater Thermostat |
| Voltage Range | 24 to 277 |
| Temp. Range | 60 to 120 deg F |
| Standards | UL Listed |
| Thermostat Control Type | Mechanical Selector Dial |
| Programming Capability | Not Programmable |
| Overall Height | 2-1/8 in |
| Thermostat Control Range | 60 to 120 deg F |
| Number of Poles | 1 |
| Thermostat Control Voltage | 24 to 277V AC |
| Voltage | 24 to 277V AC |
| Overall Width | 1-1/16 in |
| Thermostat Control Amperage | 25 A |
| Max. Operating Temp. | 120 deg F |
| Contact Rating | 22A @ 120 to 277V AC |
| Overall Depth | 1-1/16 in |
| Housing Color | Black |
| Overall Dimensions - H x W x D | 2-1/8 in x 1-1/16 in x 1-1/16 in |
| Maximum Operating Temperature | 120 deg F |
| Compatible Manufacturer Model Number | 804T09, 804T10, 804T11, 804T18 |
| Type | Unit Mounted, Field Installed, Internal Heat Recovery with Relay, 24V Coil, SP Normally Open |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
