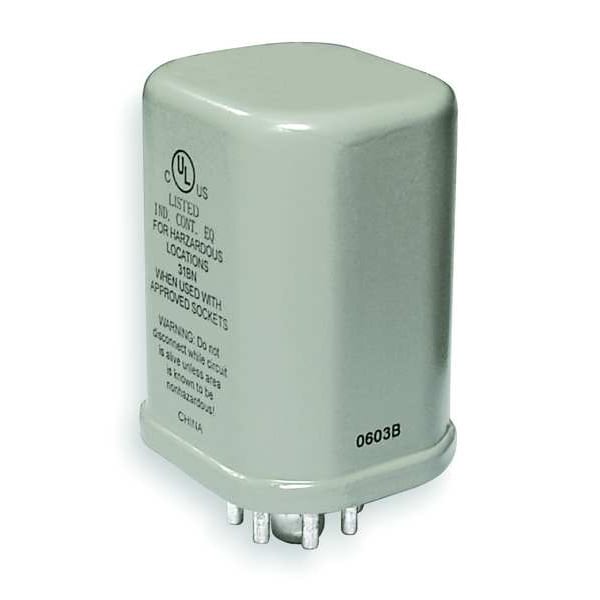

Relé herméticamente sellado, 24V de voltaje en la bobina de CC, octal, con 8 pines, DPDT.
| Item - Relay | Hermetically Sealed Relay |
|---|---|
| Coil Volts | 24V DC |
| AC Contact Rating - Relay | 12A @ 240V |
| DC Contact Rating - Relay | 12 A @ 28 V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Contact Form - Relay | DPDT |
| Mounting - Relay | Plug In |
| HP @ 120V | 1/3 hp |
| Pins | 8 |
| Status Indicator | None |
| Base Type | Octal |
| Standards | E316870 |
| Socket Code | A |
| Overall Height - Relay | 2.6 in |
| HP @ 240V | 1/2 hp |
| Power Consumption - Relay | 1.2 W |
| Contact Form | DPDT |
| Body Depth - Relay | 1.61 in |
| Contact Material | Silver Alloy |
| Contact Rating | 12A @ 240VAC/28VDC |
| Item | Hermetically Sealed Relay |
| Body Width - Relay | 1.4 in |
| Push To Test | No |
| Body Height - Relay | 2.1 in |
| Socket | 5X852, 1EGP3, 1EGP5 |
| Base Shape | Octal |
| Coil Voltage | 24 V DC |
| Horsepower @ 120V AC | 1/3 hp |
| Series | A Series |
| Current Rating | 12 A |
| Motor Rated | Yes |
| Contact Rating (DC) | 12 A @ 28 V |
| Body Depth | 1.61 in |
| Body Width | 1.4 in |
| Horsepower @ 240V AC | 0.5 HP |
| Power Consumption | 1.2 W |
| Contact Rating (AC) | 12 A @ 240V |
| Body Height | 2.1 in |
| Number of Pins | 8 |
| Push-To-Test Method | No Button |
| Overall Depth | 2.6 in |
| Mounting Style | Plug-In |
| Package Quantity | 1 |
