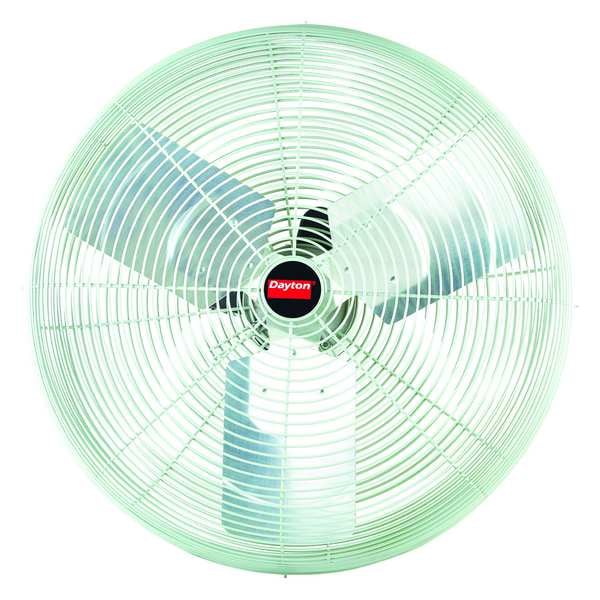

High Ambient Air Circulator, Ceiling, IBeam, Pedestal, Wall Mount, 24 in Blade Dia, 115/230V
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/230V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 7,100 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Fan Power Source | Hardwired |
| Sound Level | 74 dBA |
| Item | Air Circulator |
| Shaft Dia. | 1/2 in |
| Assembled | Yes |
| Application | High Temp. Spot Cooling; Air Circulation |
| Watts | 520 W |
| Motor Enclosure | Totally Enclosed Air Over |
| Full Load Amps | 5 |
| Max. Ambient Temp. | 140 deg F |
| Fan Mounting Location | Wall, Ceiling, Pedestal, IBeam |
| Includes | Mounting Bolts, Conduit Box |
| Fan Accessory Style | High Ambient |
| Housing Material | Steel |
| Air Velocity @ 40 Ft. | 230 fpm |
| CFM High | 7,100 |
| Guard Material | Steel |
| Wire Guard Finish | Polyester Powder Coated |
| Width | 27 in |
| Thermal Protection | Automatic Reset |
| Motor Type | Permanent Split Capacitor |
| Air Velocity @ 20 Ft. | 570 fpm |
| NEMA Plug Configuration | Hardwired |
| Hz | 60 |
| Standards | UL, cUL, OSHA |
| Requires | Mounting Device |
| Environmental Applications | Industrial |
| Motor Insulation | Class B |
| Height | 27 in |
| Motor RPM | 1,670 RPM |
| Number of Blades | 3 |
| Air Velocity @ 10 Ft. | 1,000 fpm |
| Mobile/Stationary | Stationary |
| Air Velocity @ 60 Ft. | 120 fpm |
| Fan Style | High Ambient |
| Outside Dia. | 27 in |
| Max. Depth | 13-3/4 in |
| Bearing Type | Ball |
| Fan Cord Length | No Cord |
| Fan Housing Material | Steel |
| Assembly Required | No |
| Color | Gray |
| RPM | 1670 |
| Depth | 13-3/4 in |
| Amps | 5.2/2.6 |
| Height Adjustment | Fixed Height |
| Wheeled Base | Stationary |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
