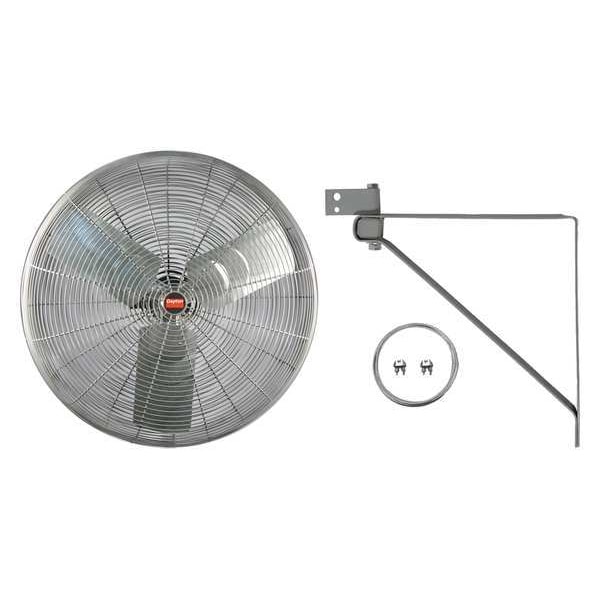

High Ambient Air Circulator, Wall Mount, 30 in Blade Dia, 115V, 8,900 cfm, Non-Oscillating
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 30 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 8,900 cfm |
| Drive Type | Direct Drive |
| Blade Material | Mill Finish Aluminum |
| Sound Level | 75 dBA |
| Item | Air Circulator |
| Air Velocity @ 60 Ft. | 117 fpm |
| Application | High Temp. Spot Cooling; Air Circulation |
| Environmental Applications | Industrial |
| Fan Mounting Location | Wall |
| Air Velocity @ 10 Ft. | 774 fpm |
| Mobile/Stationary | Stationary |
| Number of Blades | 3 |
| Bearing Type | Ball |
| Width | 33 in |
| Hz | 60 |
| Max. Depth | 14-1/4 in |
| Motor RPM | 1,075 RPM |
| Standards | UL, cUL, OSHA |
| Thermal Protection | Automatic |
| Air Velocity @ 20 Ft. | 700 fpm |
| Max. Ambient Temp. | 140 deg F |
| Assembled | Yes |
| Air Velocity @ 40 Ft. | 202 fpm |
| CFM High | 8,900 |
| Guard Material | Steel |
| Fan Style | High Ambient |
| Wire Guard Finish | Polyester Powder Coated |
| Outside Dia. | 33 in |
| Fan Accessory Style | High Ambient |
| Housing Material | Steel |
| Shaft Dia. | 1/2 in |
| Motor Enclosure | Totally Enclosed Air Over |
| Includes | Mounting Bolts, Conduit Box, (1) 1ZCP6 Mounting Bracket |
| Motor Insulation | Class B |
| Height | 33 in |
| Watts | 350 W |
| Depth | 14-1/4 in |
| Assembly Required | No |
| Wheeled Base | Stationary |
| Fan Housing Material | Steel |
| Amps | 4.9 |
| RPM | 1075 |
| Material | Steel |
| Color | Gray |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
