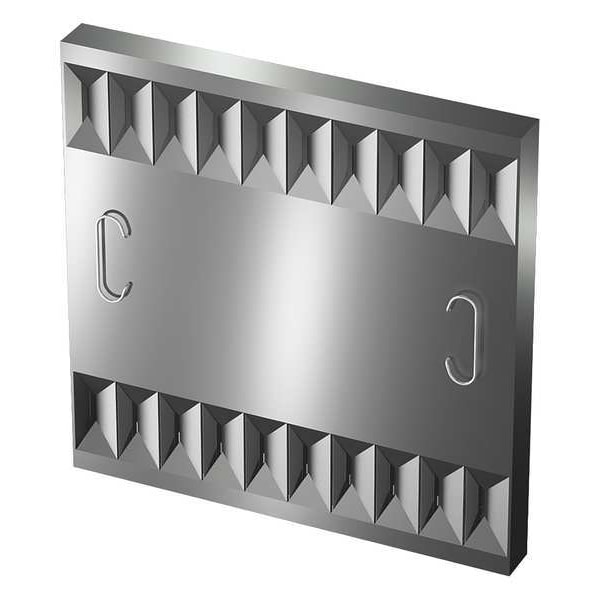

High Efficiency Mesh Air Filter, 20x16x2"
| Nominal Filter Size | 20 x 16 x 2 |
|---|---|
| Actual Filter Size | 19-1/2 in x 15-1/2 in x 1-3/4 in |
| Media Material | Aluminum |
| Air Filter Construction | Baffle |
| Nominal Depth | 2 in |
| Initial Resistance | 0.48 to 0.79"WC |
| Max. Velocity | 650 fpm |
| Air Filter Item | Grease Filter |
| Actual Depth | 1-3/4 in |
| Air Flow @ 300 fpm | 675 cfm |
| Item | Grease Filter |
| Max. Temp. | 1,200 deg F |
| Frame or Header Material | Aluminum |
| Standards | NSF Certified, UL 1046 Classified |
| Air Flow | 265 to 400 cfm |
| Baffle Material | Aluminum Mesh |
| Removes Particles Down To | 3.0 to 10.0 micron |
| Style - Air Filters | Panel |
| Actual Height | 19-1/2 in |
| Initial Resistance @ 300 fpm | 0.65 in wc |
| For Use With | 6KWK8, 6KWK9, 6KWL1, 20UD05 |
| For Use With (Systems) | Type 1 Commercial Exhaust Hoods |
| Nominal Height | 16 in |
| Includes | Handles |
| Filter Efficiency - Air Filters | 65 % |
| Actual Width | 15 1/2 in |
| Nominal Width | 20 in |
| Shape | Rectangular |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
