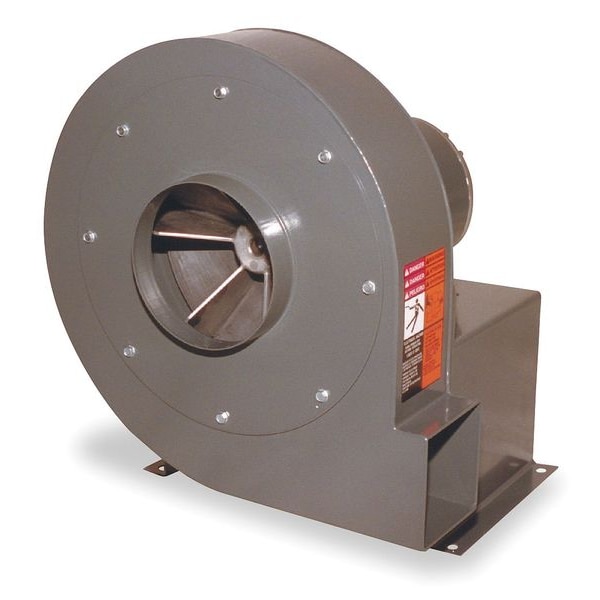

High Pressure Blower, 1-1/2 HP, 1 Phase
| Item | High Pressure Blower |
|---|---|
| Type | With Motor |
| Wheel Dia. (In.) | 10-9/16 |
| Voltage | 115/230 |
| Motor HP | 1.5 |
| CFM @ 0.500-In. SP | 772 |
| dBA @ 5 Feet | 84 dBA |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| CFM @ 7.000-In. SP | 329 |
| Dimension E (In.) | 6-7/8 |
| Shaft Dia. (In.) | 5/8 |
| Phase | 1 |
| Full Load Amps | 17.4/8.7 |
| Dimension G (In.) | 3/4 |
| Wheel Bore (In.) | 5/8 in |
| Dimension X (In.) | 11-3/4 |
| Assembled/Unassembled | Assembled |
| Inlet Dia. (In.) | 6 |
| Dimension B (In.) | 9 |
| CFM @ 3.000-In. SP | 635 |
| Dimension H (In.) | 7-1/4 |
| Blower RPM | 3,500 RPM |
| Max. Inlet Temp. (Deg. F) | 180 Degrees F |
| Dimension D (In.) | 3-1/2 |
| CFM @ 4.000-In. SP | 575 |
| CFM @ 1.000-In. SP | 746 |
| Depth (In.) | 14 |
| Discharge Width (In.) | 3-1/2 |
| CFM @ 0.250-In. SP | 786 |
| Housing Material | Steel |
| Discharge Height (In.) | 4 |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Dimension R (In.) | 8-5/8 |
| Dimension P (In.) | 6 |
| CFM @ 1.500-In. SP | 719 |
| Dimension S (In.) | 8-1/4 |
| Hz | 60 |
| Dimension C (In.) | 4 |
| CFM @ 5.000-In. SP | 508 |
| CFM @ 2.000-In. SP | 692 |
| Dimension L (In.) | 7-5/8 |
| Rotation | CW |
| Dimension F (In.) | 7-1/2 |
| Dimension T (In.) | 16 |
| Agency Compliance | CE, UL, CSA-US Pending |
| Housing Finish | Gray Polyester Epoxy |
| Bearing Type | Ball |
| Motor Frame | 56 |
| Wheel Material | Aluminum |
| Dimension K (In.) | 8 |
| Dimension J (In.) | 6-1/2 |
| Width (In.) | 14-1/2 |
| Height (In.) | 19 |
| Dimension A (In.) | 14-3/4 |
| Motor RPM | 3,500 RPM |
| Wheel Width (In.) | 3 |
| CFM @ 6.000-In. SP | 431 |
| Inlet Diameter | 6 in |
| Includes Drive Package | Yes |
| Maximum Ambient Temperature | 104 Degrees F |
| Airflow @ 7.000 in SP | 329 cfm |
| Current | 12.47/6.89-6.23 |
| Outlet Width | 3-1/2 in |
| Wheel Diameter | 10-1/2 in |
| Wheel Width | 3 in |
| Nameplate Voltage | 115/208-230 |
| Motor Speed | 3,500 rpm |
| Discharge Position | Bottom Angular Down, Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast |
| Number of Discharge Positions | 8 |
| Shaft Diameter | 5/8 in |
| Airflow @ 4.000 in SP | 575 cfm |
| Standards | Not Rated |
| Assembly | Assembled |
| Housing Material Finish | Baked Enamel |
| Mount Type | Motor Mount |
| Manufacturer Warranty Length | 1 yr Limited |
| Flange Size | Not Applicable |
| Housing Depth | 14 in |
| Maximum Static Pressure | 7 in wc |
| Outlet Height | 4 in |
| Airflow @ 5.000 in SP | 508 cfm |
| Airflow @ 1.000 in SP | 746 cfm |
| Airflow @ 3.000 in SP | 635 cfm |
| For Ventilation Type | Exhaust |
| Maximum Fan Speed | 3,500 rpm |
| Overall Width | 14-1/2 in |
| Outlet Diameter | Not Applicable |
| Motor Horsepower | 1.5 HP |
| Includes Motor | Yes |
| Airflow @ 0.500 in SP | 772 cfm |
| Outlet Shape | Rectangular |
| Airflow @ 2.000 in SP | 692 cfm |
| Motor Frame Designation | 56 |
| Overall Height | 19 in |
| Application | Fibrous Material Such as Textile Scrap, Wool and Ensilage, Long Stringy Material, Paper Trim |
| Airflow @ 0.250 in SP | 786 cfm |
| For Air Type | Dusty, Dirty |
| Flange Type | Non-Flanged |
| Airflow @ 1.500 in SP | 719 cfm |
| Wheel Type | Radial |
| Wheel Bore Diameter | 5/8 in |
| Frequency | 60 Hz |
| Housing Color | Gray |
| Sound Level | 84 dBA @ 5 ft |
| Features | Self-Cleaning Cast Aluminum Wheels |
| Drive Type | Direct Drive |
| Airflow @ 6.000 in SP | 431 cfm |
| Maximum Inlet Air Temperature | 180 Degrees F |
| Number of Inlets | 1 |
| OEM Replacement | No |
| Spark Resistant Construction Type | Not Rated |
| Speed Controllable | No |
| Motor Duty Class | Continuous |
| Chemical Resistant | No |
| Corrosion Resistant | Yes |
| For High-Static Pressure Applications | Yes |
| Number of Speeds | 1 |
| Motor Location | Out of Airstream |
| AMCA Fan Class | Not Rated |
| Hazardous Location Application | No |
| Hazardous Location Specification | N |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
