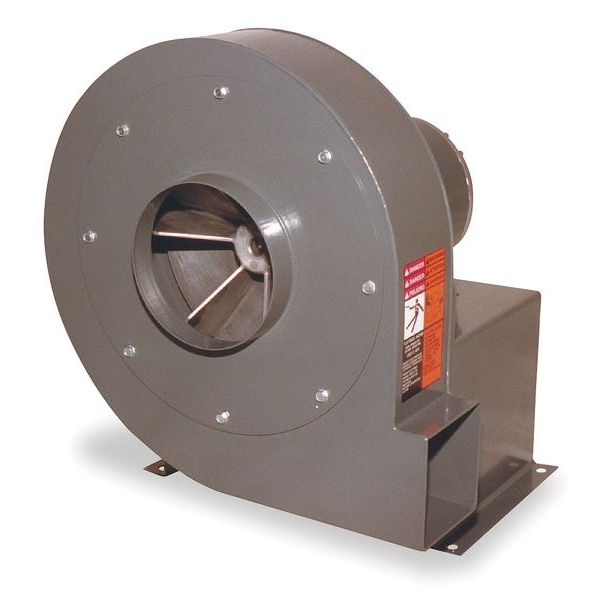

High Pressure Blower, 7-3/4 in Wheel Dia.
| Item | High Pressure Blower |
|---|---|
| Type | With Motor |
| Wheel Dia. (In.) | 7-3/4 |
| Voltage | 115/230 |
| Motor HP | 0.3333 |

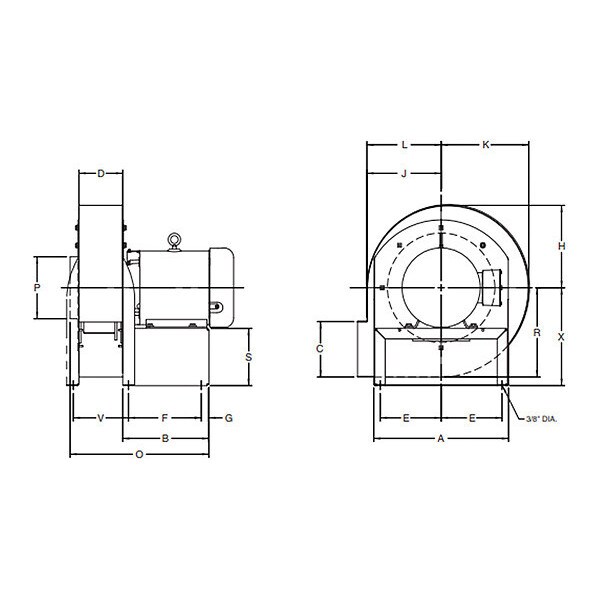

| Dimension E (In.) | 5 |
| CFM @ 3.000-In. SP | 165 |
| Motor Frame | 56 |
| Dimension A (In.) | 11 |
| Full Load Amps | 4.8/2.4 |
| CFM @ 2.000-In. SP | 216 |
| CFM @ 1.500-In. SP | 237 |
| CFM @ 0.500-In. SP | 274 |
| Wheel Material | Aluminum |
| dBA @ 5 Feet | 74 dBA |
| Dimension T (In.) | 12 |
| Wheel Width (In.) | 2-1/4 |
| CFM @ 0.250-In. SP | 283 |
| CFM @ 4.000-In. SP | 70 |
| Wheel Bore (In.) | 5/8 in |
| Rotation | CW |
| Dimension O (In.) | 12-1/4 |
| Dimension J (In.) | 4-7/8 |
| Dimension R (In.) | 6-5/8 |
| Discharge Width (In.) | 3 |
| Bearing Type | Ball |
| Dimension P (In.) | 4 |
| Dimension C (In.) | 3 |
| Discharge Height (In.) | 3 |
| Dimension K (In.) | 5-7/8 |
| Dimension G (In.) | 1/2 |
| Assembled/Unassembled | Assembled |
| Dimension H (In.) | 5-3/8 |
| Housing Finish | Gray Polyester Epoxy |
| Depth (In.) | 12-1/4 |
| Dimension D (In.) | 3 |
| Dimension X (In.) | 8-1/2 |
| Dimension S (In.) | 5-1/2 |
| Agency Compliance | CE, UL, CSA-US Pending |
| Width (In.) | 11-3/4 |
| Phase | 1 |
| Motor RPM | 3,500 RPM |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Dimension L (In.) | 5-7/8 |
| Max. Inlet Temp. (Deg. F) | 180 Degrees F |
| Dimension B (In.) | 8 |
| Height (In.) | 13-7/8 |
| Housing Material | Steel |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Inlet Dia. (In.) | 4 |
| Dimension F (In.) | 7 |
| CFM @ 1.000-In. SP | 256 |
| Hz | 60 |
| Blower RPM | 3,500 RPM |
| Shaft Dia. (In.) | 5/8 |
| Inlet Diameter | 4 in |
| Motor Speed | 3,500 rpm |
| Flange Type | Non-Flanged |
| Flange Size | Not Applicable |
| Motor Horsepower | 0.3333 HP |
| Airflow @ 0.500 in SP | 274 cfm |
| Maximum Fan Speed | 3,500 rpm |
| Maximum Inlet Air Temperature | 180 Degrees F |
| Airflow @ 0.250 in SP | 283 cfm |
| Outlet Width | 3 in |
| Number of Discharge Positions | 8 |
| Overall Height | 13-7/8 in |
| Wheel Width | 2-15/16 in |
| Airflow @ 2.000 in SP | 216 cfm |
| Motor Frame Designation | 48 |
| Includes Drive Package | Yes |
| Drive Type | Direct Drive |
| Number of Inlets | 1 |
| For Air Type | Dusty, Dirty |
| Standards | Not Rated |
| Housing Color | Gray |
| Outlet Shape | Square |
| Mount Type | Motor Mount |
| Current | 5.5/2.7-2.8 |
| Wheel Type | Radial |
| Airflow @ 1.500 in SP | 237 cfm |
| Housing Depth | 12-1/4 in |
| Assembly | Assembled |
| Maximum Ambient Temperature | 104 Degrees F |
| Airflow @ 4.000 in SP | 70 cfm |
| Overall Width | 11-3/4 in |
| Application | Fibrous Material Such as Textile Scrap, Wool and Ensilage, Long Stringy Material, Paper Trim |
| Maximum Static Pressure | 4 in wc |
| Outlet Diameter | Not Applicable |
| Frequency | 60 Hz |
| Features | Self-Cleaning Cast Aluminum Wheels |
| Manufacturer Warranty Length | 1 yr Limited |
| Wheel Diameter | 7-3/4 in |
| Housing Material Finish | Baked Enamel |
| Shaft Diameter | 1/2 in |
| Wheel Bore Diameter | 1/2 in |
| Sound Level | 74 dBA @ 5 ft |
| For Ventilation Type | Exhaust |
| Airflow @ 1.000 in SP | 256 cfm |
| Outlet Height | 3 in |
| Discharge Position | Bottom Angular Down, Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast |
| Nameplate Voltage | 115/208-230 |
| Airflow @ 3.000 in SP | 165 cfm |
| Includes Motor | Yes |
| OEM Replacement | No |
| Number of Speeds | 1 |
| Corrosion Resistant | Yes |
| Hazardous Location Specification | N |
| Chemical Resistant | No |
| For High-Static Pressure Applications | Yes |
| Motor Location | Out of Airstream |
| Hazardous Location Application | No |
| Spark Resistant Construction Type | Not Rated |
| AMCA Fan Class | Not Rated |
| Motor Duty Class | Continuous |
| Speed Controllable | No |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
