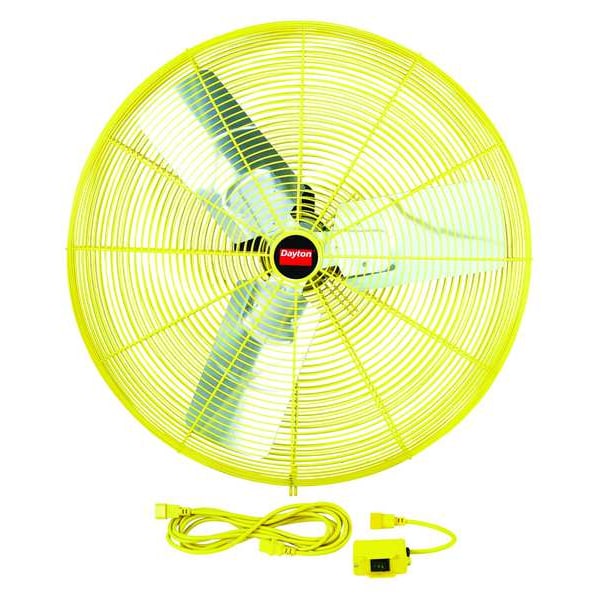

High Visibility Air Circulator, Ceiling, IBeam, Pedestal, Wall Mount, 30 in Blade Dia, 115V
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 30 in |
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 8,750/9,400 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 77 dBA |
| Item | Air Circulator |
| Shaft Dia. | 1/2 in |
| Fan Accessory Style | High Visibility |
| Air Velocity @ 20 Ft. | 650/350 fpm |
| Motor Enclosure | Totally Enclosed Air Over |
| Requires | Mounting Device |
| Standards | UL, cUL, OSHA |
| Air Velocity @ 60 Ft. | 140 fpm |
| CFM/Watt | 27.8/27.4 |
| Max. Depth | 13-1/4 in |
| Assembled | Yes |
| Height | 33 in |
| NEMA Plug Configuration | 5-15p |
| Includes | 15 ft. Extension Cord and 3 Position Drop Cord Switch |
| Number of Blades | 3 |
| Housing Material | Steel |
| Bearing Type | Ball |
| Fan Mounting Location | Wall, Ceiling, Pedestal, IBeam |
| Thermal Protection | Automatic Reset |
| Fan Style | High Visibility |
| Number of Conductors | 3 |
| CFM High | 9,400 |
| Air Velocity @ 40 Ft. | 220/100 fpm |
| Wire Guard Finish | Polyester Powder Coated |
| Air Velocity @ 10 Ft. | 900/500 fpm |
| Hz | 60 |
| CFM Low | 8,750 |
| Motor Insulation | Class B |
| Max. Ambient Temp. | 104 deg F |
| Motor RPM | 1,100/850 RPM |
| Watts | 450/360 W |
| Width | 33 in |
| Outside Dia. | 33 in |
| Mobile/Stationary | Stationary |
| Motor Type | Permanent Split Capacitor |
| Application | Spot Cooling and People Cooling; Air Circulation |
| Guard Material | Steel |
| Environmental Applications | Industrial |
| Assembly Required | No |
| Amps | 4.2/3.3 |
| Fan Housing Material | Steel |
| RPM | 1100/850 |
| Color | Yellow |
| Depth | 13-3/4 in |
| Wheeled Base | Stationary |
| Fan Cord Length | 10 ft |
| Height Adjustment | Fixed Height |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
