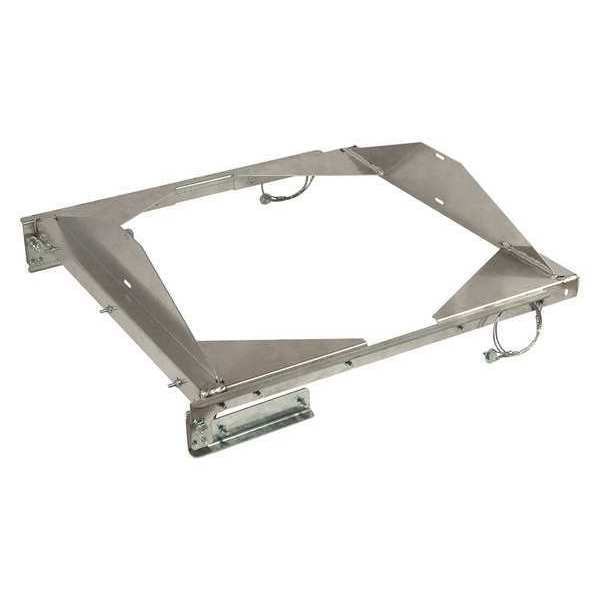

Hinge Kit, 46inWx46inL, Galvanized Steel
| Item | Hinge Kit |
|---|---|
| Function | Make Cleaning Easier By Allowing Ventilators to Swing Back to Expose the Wheel and Ductwork |
| Construction Material | Galvanized Steel |
| For Use With | Dayton Roof Mounted Centrifugal Upblast Ventilators Having a 46 in Square Base |
| Use w/Dayton Ventilators | 4YY22 |
| Includes | Hardware Kit, Reinforcement Angles, Retaining Cable |
| Width (In.) | 46 |
| Remarks | Required for NFPA 96 and UL 762 Cooking Applications |
| Length (In.) | 46 |
| Material | Galvanized Steel |
| Container Capacity | Not Applicable |
| Fits Square Base Size | 46 in |
| For Fan Type | Downblast Fans, Upblast Fans |
| Overall Length | 46 in |
| Standards | AMCA, NFPA 96, UL 762 |
| Application | Make Cleaning Easier By Allowing Ventilators to Swing Back to Expose the Wheel and Ductwork |
| For Fan Mounting Type | Roof Mount |
| Overall Width | 46 in |
| Product Type | Hinge Kit |
| Finish | Galvanized |
| Compatible Manufacturer Model Number | CUBE-360, CUBE-360HP, CUBE-360XP |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
