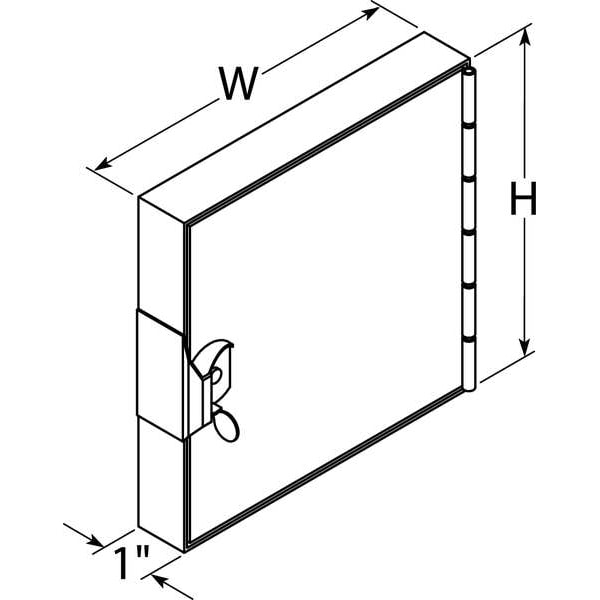

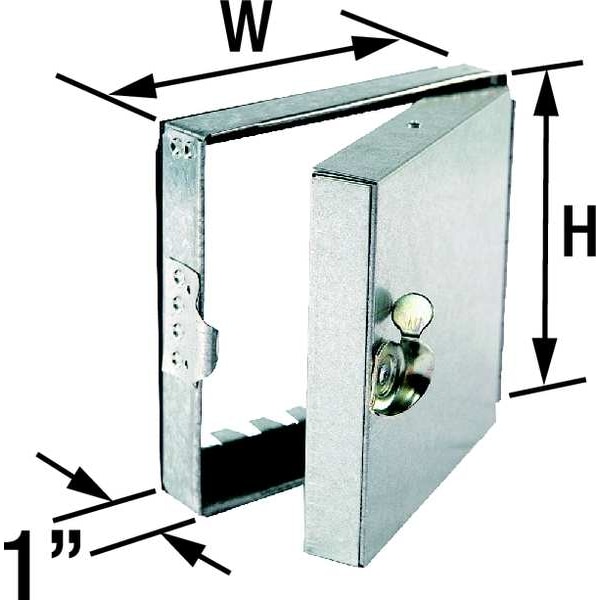

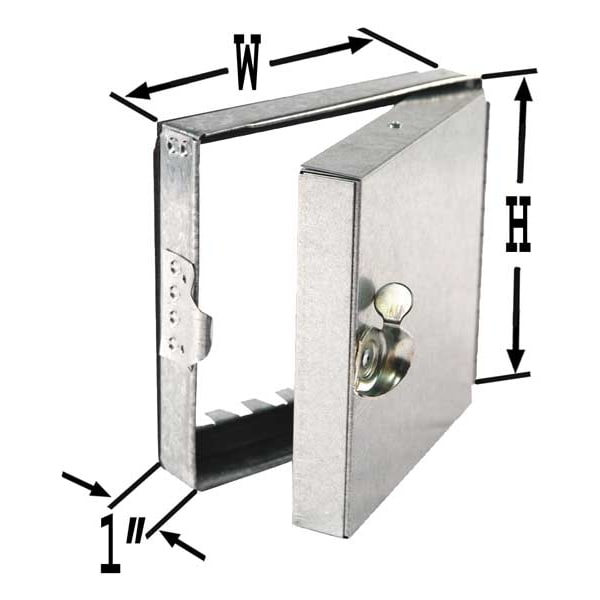

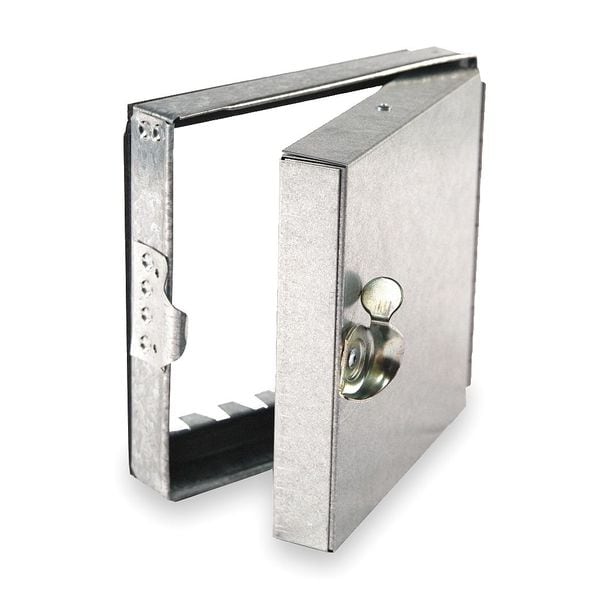

Hinged Duct Access Door, 6 In. W, 6 In. H
| Item | Duct Access Door |
|---|---|
| Shape | Square |
| Includes | Cam Latch, Mounting Tabs |
| Material | Steel |
| Door Height | 6 in |
| Hinges | Tab-In |
| Finish | Galvanized |
| Rough Opening Width | 5-1/2 in |
| Latch | Single Cam |
| Door Width | 6 in |
| Rough Opening Height | 5-1/2 in |
| Standards | NFPA 80 |
| Material Thickness | 24 ga |
| Door Thickness | 1 3/4 in |
| Observation Port Width | 6 in |
| Insulation Material | Fiberglass |
| For Nominal Duct Diameter | Not Applicable |
| Maximum Pressure Rating | 4 in wc |
| Maximum Temperature Rating | High Temperature |
| Hinge Style | Tab-In |
| Fire Rating | Not Rated |
| Observation Port Material | Steel |
| Mounting Stud Length | Not Applicable |
| Observation Port Height | 6 in |
| Number of Mounting Stud | Not Applicable |
| Door Shape | Square |
| Product Type | Access Door |
| Latch Type | Single Cam |
| For Duct Shape | Rectangular |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
