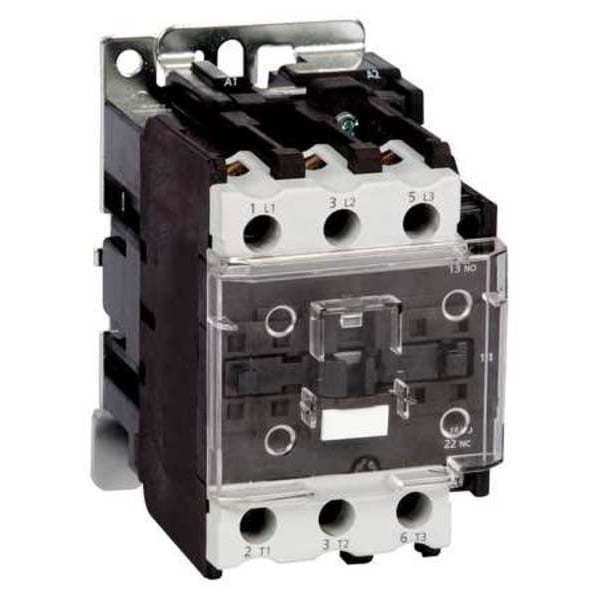

Contacto magnético IEC, 3 polos, 120 V CA, 50 A, Reversión: No
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 50 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 70 A |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 7.5 |
| HP @ 1 Phase - 120V | 3 hp |
| Height | 2.95 in |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 208V | 15 hp |
| Width | 2.95 in |
| Depth | 4.6 in |
| HP @ 3 Phase - 575V | 40 hp |
| HP @ 3 Phase - 240V | 15 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO/1NC |
| Standards | CSA, UL Listed |
| NEMA Size | Not Applicable |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Includes Auxiliary Contacts | Yes |
| Reversing Capability | Non-Reversing |
| Embedded Surge Suppressor | No |
| Full Load Current - Resistive | 70 A |
| Overall Depth | 4.6 in |
| Full Load Current - Inductive | 50 A |
| Terminal Connection Type | Screw Terminals |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Horsepower @ Three Phase - 208V AC | 15 HP |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Overall Width | 2.95 in |
| NEMA Enclosure Material | Not Applicable |
| Coil Voltage | 120V AC |
| Contactor Style | IEC |
| Horsepower @ Three Phase - 600V AC | 40 HP |
| Number of Auxillary Contacts | 2 |
| Overall Height | 2.95 in |
| Package Quantity | 1 |
