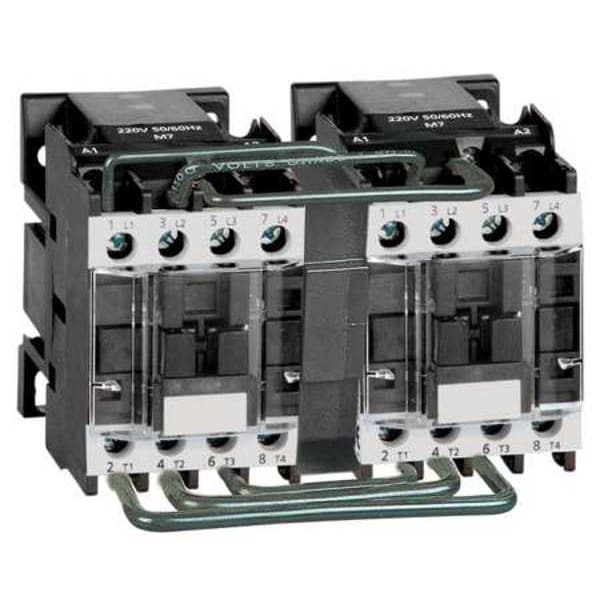

Contacto magnético IEC, 3 polos, 24 V CA, 18 A, Reversión: Sí.
| Full Load Amps-Inductive | 18 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Reversing |
| Full Load Amps-Resistive | 32 A |
| Number of Poles | 3 |
| Coil Volts | 24 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 230V | 3 |
| HP @ 1 Phase - 120V | 1 hp |
| HP @ 1 Phase - 240V | 3 hp |
| Height | 4.17 in |
| HP @ 3 Phase - 208V | 5 hp |
| Width | 4.17 in |
| HP @ 3 Phase - 575V | 15 hp |
| HP @ 3 Phase - 240V | 5 hp |
| Depth | 3.4 in |
| HP @ 3 Phase - 480V | 10 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 1NO |
| Hz | 50/60 |
| Auxiliary Contact Form | 1NO |
| Standards | UL Listed |
| NEMA Size | Not Applicable |
| Reversing Capability | Reversing |
| Overall Height | 4.17 in |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| NEMA Enclosure Material | Not Applicable |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 208V AC | 5 HP |
| Frequency | 50/60 Hz |
| Overall Width | 4.17 in |
| Horsepower @ Three Phase - 600V AC | 15 HP |
| Coil Voltage | 24V AC |
| Number of Auxillary Contacts | 1 |
| Overall Depth | 3.4 in |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Embedded Surge Suppressor | No |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Three Phase - 240V AC | 5 HP |
| Full Load Current - Inductive | 18 A |
| Package Quantity | 1 |
