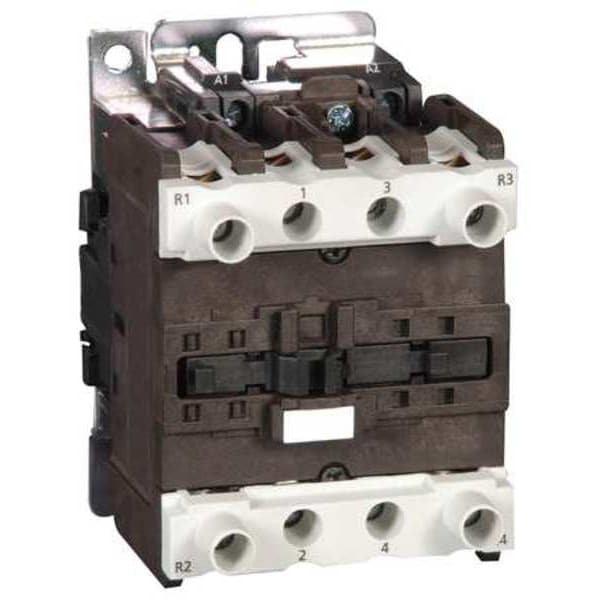

Contacto magnético IEC, 4 polos, 24 V CA, 40 A, Reversión: No
| Full Load Amps-Inductive | 40 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 60 A |
| Action | Non-Reversing |
| Number of Poles | 4 |
| Coil Volts | 24 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 230V | 5 |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 2.95 in |
| Width | 2.95 in |
| Depth | 4.6 in |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Standards | CSA, UL Listed |
| Auxiliary Contact Form | Auxiliary Contacts Not Included |
| Special Features | Main Contact Configuration 2NC/2NO |
| NEMA Size | Not Applicable |
| Full Load Current - Inductive | 40 A |
| Frequency | 50/60 Hz |
| Full Load Current - Resistive | 60 A |
| NEMA Enclosure Material | Not Applicable |
| Number of Auxillary Contacts | 4 |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Coil Voltage | 24V AC |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Overall Height | 5 in |
| Number of Normally Closed Main Contacts | 2 |
| Embedded Surge Suppressor | No |
| Overall Depth | 4.8 in |
| Contactor Style | IEC |
| Reversing Capability | Non-Reversing |
| Number of Normally Open Main Contacts | 2 |
| Overall Width | 3.35 in |
| NEMA Enclosure Rating | No Enclosure |
| Package Quantity | 1 |
