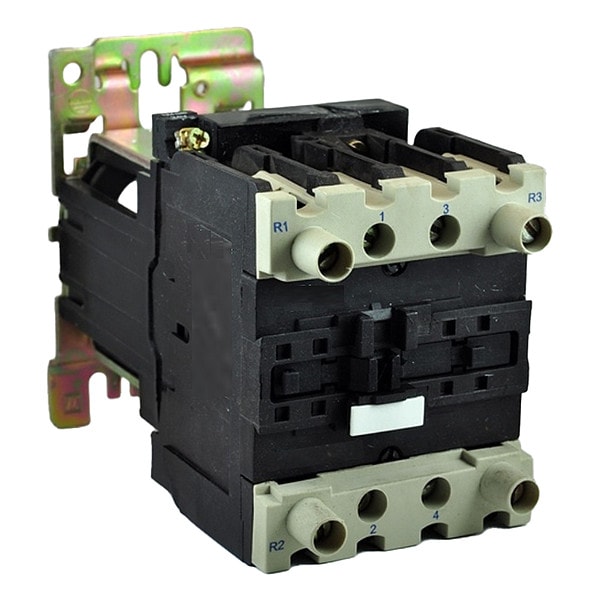

Contacto magnético IEC, 4 polos, 24 V CC, 50 A, inversión: No.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 50 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 80 A |
| Number of Poles | 4 |
| Coil Volts | 24 V DC |
| Reversing | No |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 230V | 7.5 |
| Height | 3.34 in |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Width | 3.34 in |
| Depth | 6.73 in |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Standards | CSA, UL Listed |
| Special Features | Main Contact Configuration 2NC/2NO |
| Auxiliary Contact Form | Auxiliary Contacts Not Included |
| NEMA Size | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Number of Normally Closed Main Contacts | 2 |
| Includes Auxiliary Contacts | Yes |
| NEMA Enclosure Material | Not Applicable |
| Number of Normally Open Main Contacts | 2 |
| Full Load Current - Inductive | 50 A |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Reversing Capability | Non-Reversing |
| Frequency | Not Applicable |
| Overall Height | 3.34 in |
| Full Load Current - Resistive | 80 A |
| Overall Width | 3.34 in |
| Number of Auxillary Contacts | 4 |
| Overall Depth | 6.73 in |
| Coil Voltage | 24V DC |
| Embedded Surge Suppressor | No |
| Contactor Style | IEC |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Package Quantity | 1 |
