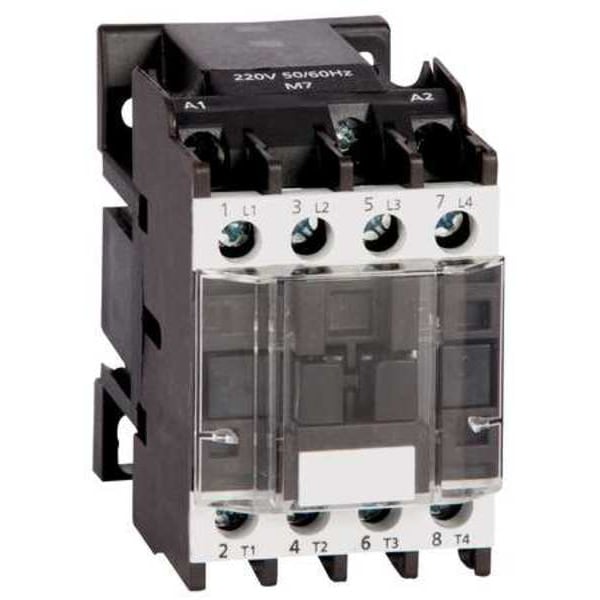

Contactador magnético IEC, 4 polos, 240 V CA, 12 A, Reversión: No
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 12 A |
| Full Load Amps-Resistive | 25 A |
| Action | Non-Reversing |
| Number of Poles | 4 |
| Coil Volts | 240 V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 2 |
| HP @ 1 Phase - 120V | 1 hp |
| Height | 1.77 in |
| HP @ 1 Phase - 240V | 2 hp |
| Width | 1.77 in |
| Depth | 3.18 in |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Special Features | Main Contact Configuration 2NC/2NO |
| Standards | CSA, UL Listed |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | Auxiliary Contacts Not Included |
| Frequency | 50/60 Hz |
| Number of Normally Open Main Contacts | 2 |
| Number of Normally Closed Main Contacts | 2 |
| Full Load Current - Inductive | 12 A |
| Includes Auxiliary Contacts | Yes |
| Embedded Surge Suppressor | No |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Reversing Capability | Non-Reversing |
| Overall Height | 1.77 in |
| Terminal Connection Type | Screw Terminals |
| Contactor Style | IEC |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Overall Depth | 3.18 in |
| NEMA Enclosure Rating | No Enclosure |
| Overall Width | 1.77 in |
| Coil Voltage | 240V AC |
| Number of Auxillary Contacts | 4 |
| Full Load Current - Resistive | 25 A |
| Package Quantity | 1 |
