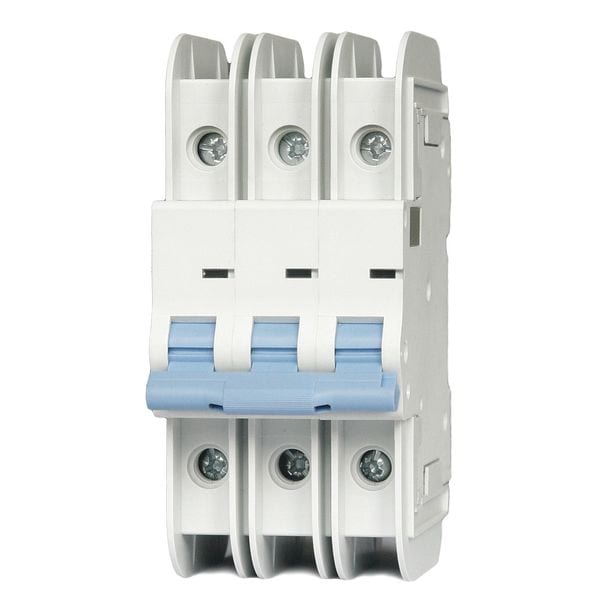

IEC Miniature Circuit Breaker, NDB2T-63 C10/3 L Series, 10A, 3 Pole, 480V AC, 10kA at 480V AC
| Item | IEC Miniature Circuit Breaker |
|---|---|
| Series | NDB2T-63 C10/3 L |
| Amps | 10A |
| Number of Poles | 3 |
| AC Voltage Rating | 480V AC |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 10kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 32A/NDB2T |
| Width | 2.13 in |
| Depth | 3 in |
| Height | 4.01 in |
| DC Voltage Rating | Not Rated |
| Curve Type | C |
| Min. Wire Size | 7 AWG |
| Max. Wire Size | 23 AWG |
| Standards | UL Listed for US & Canada; CE |
| Meets UL Type | UL 489 |
| Length (Straight Wireway) | 4.01 in |
| Mounting | Din Rail |
| Length | 4.01 in |
| Package Quantity | 1 |
