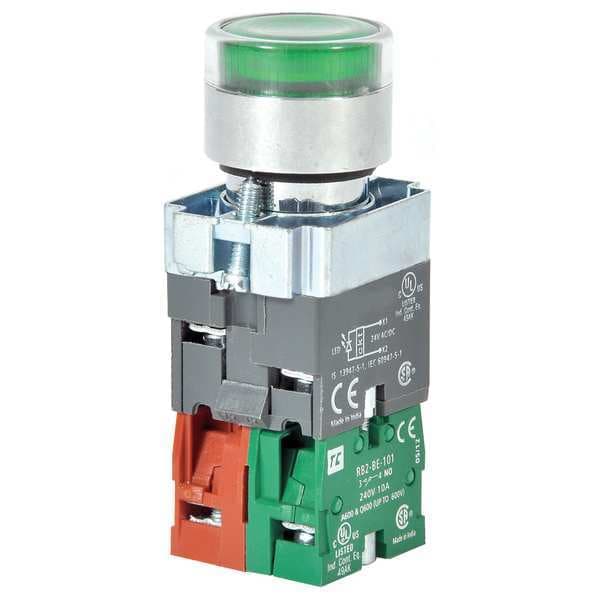

Botón pulsador iluminado, 22 mm, 1NA/1NC, Verde
| Item | Illuminated Push Button |
|---|---|
| Contact Rating | 1.2 A @ 600V AC, 3 A @ 240V AC, 6 A @ 120V AC |
| Size | 22 mm |
| Action | Momentary |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Lamp Voltage | 24V AC/DC |
| Lamp Type | LED |
| Type of Operator | Round Guarded Button |
| Head Material | Metal |
| Contact Form | 1NO/1NC |
| Number of Operators | 1 |
| Bezel | Chrome |
| Color | Green |
| Lamp Module Voltage | 24V AC/DC |
| Bezel Material | Chrome |
| Standards | CE, CSA, IEC, UL Listed |
| Terminal Connection | Pressure Plate |
| Basic Material | Metal |
| Contact Type | 1NO / 1NC |
| Lamp Module Type | Full Voltage |
| IP Rating | IP65 |
| Voltage | 24V AC/DC |
| NEMA Contact Rating Designation | A600, Q600 |
| AC Contact Rating | 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V |
| Series | Dayton |
| Product Type | Push Button Operators |
| Panel Cutout Diameter | 22 mm |
| Operator Material | Metal |
| Head Color | Green |
| Mushroom Head Diameter | Not Applicable |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 2 |
| Push Button Style | Extended |
| Lamp Voltage - Maximum | 24 V AC/DC |
| Operator Illumination | Illuminated |
| Package Quantity | 1 |
