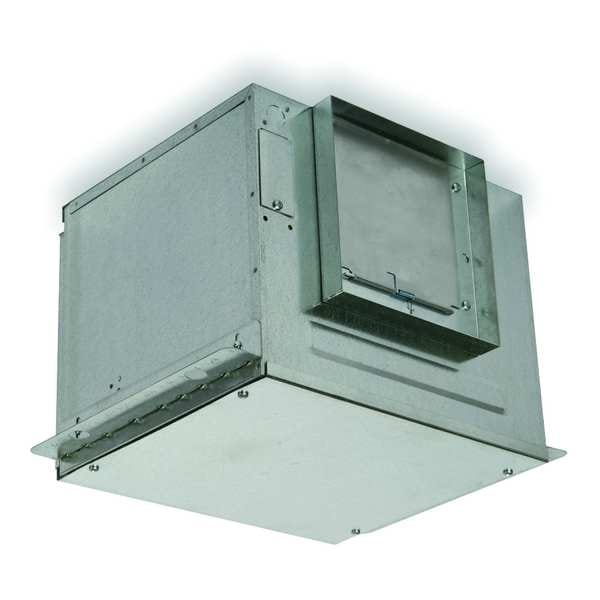

In-Line Cabinet Fan, 447 CFM
| Item | In-Line Ceiling Exhaust Fan |
|---|---|
| Phase | 1 |
| Motor Type | Shaded Pole |
| Dimension F | 16-7/8 in |
| Recommended Accessories | 48C172, 6WZP3 |
| Housing Length | 18 in |
| Housing Material | Steel |
| CFM @ 0.100-In. SP | 441 |
| Singlewide / Doublewide | Singlewide |
| CFM @ 0.000-In. SP | 447 |
| Mounting Position | Horizontal or Vertical |
| Inlet Width | 16-7/8 in |
| Discharge Height | 8 in |
| Dimension D | 8 in |
| Insulated | Yes |
| CFM @ 0.125-In. SP | 403 |
| Dimension B | 14-3/8 in |
| Voltage | 115V AC |
| Hz | 60 |
| CFM @ 0.625-In. SP | 23,410 |
| Discharge Width | 8 in |
| Dimension E | 8 in |
| Motor Insulation | Class B |
| CFM @ 0.750-In. SP | 6,721 |
| Housing Height | 14-1/2 in |
| Max. Inlet Temp. | 104 Degrees F |
| CFM @ 0.250-In. SP | 364 |
| Sones @ 0.250-In. SP @ 5 Ft. | 2 |
| CFM @ 1.500-In. SP | 5826 |
| Includes | Backdraft Damper, Mounting Brackets |
| Sones @ 0.000-In. SP @ 5 Ft. | 1.5 |
| Wheel Material | Galvanized Steel |
| Housing Width | 14-3/8 in |
| Standards | AMCA, UL/cUL |
| CFM @ 0.500-In. SP | 217 |
| Speed Control | 48C172 |
| Motor RPM | 1000 |
| CFM @ 0.375-In. SP | 317 |
| Motor Enclosure | Open Dripproof |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 1.5 |
| Inlet Height | 13-1/4 in |
| CFM @ 0.200-In. SP | 380 |
| Sones @ 0.125-In. SP @ 5 Ft. | 1.5 |
| Watts | 135 |
| Full Load Amps | 1.87 |
| For Use With | General Ventilation Applications |
| Dimension A | 18 in |
| Overall Width | 14-3/8 in |
| Overall Height | 14-1/2 in |
| Blower Wheel Curve | Backward |
| Vent Design | Ducted |
| Duct Shape | Square |
| Nameplate Voltage | 115 V AC |
| Maximum Airflow | 447 cfm |
| Exhaust Airflow @ 0.100 in SP | 441 cfm |
| Heater | Without Heater |
| Exhaust Airflow @ 0.200 in SP | 380 cfm |
| Noise Level @ 0.250 in SP @ 5 ft | 2 sones |
| Sensor Type | None |
| Blower Wheel Material | Steel |
| Noise Level @ 0.100 in SP @ 5 ft | 1.5 sones |
| Maximum Noise Level | 2 sones |
| Includes Grill | No |
| Motor Speed | 1,000 rpm |
| Mounting Orientation | Vertical, Horizontal |
| Exhaust Airflow @ 0.000 in SP | 447 cfm |
| Maximum Inlet Temperature | 104 Degrees F |
| Profile Width Family | Single-Wide |
| Noise Level @ 0.000 in SP @ 5 ft | 1.5 sones |
| Frequency | 60 Hz |
| Noise Level @ 0.125 in SP @ 5 ft | 1.5 sones |
| Lighted | Without Light |
| Overall Depth | 18 in |
| Duct Height | 8 in |
| Discharge Direction | Horizontal, Vertical |
| Profile Height Family | High |
| Exhaust Airflow @ 0.250 in SP | 364 cfm |
| Housing Finish | Galvanized |
| Wattage | 135 W |
| Duct Width | 8 in |
| Full Load Current | 1.87 A |
| Motor Output Power | 25.8 W |
| Fan Wattage | 135 W |
| Duct Diameter | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
