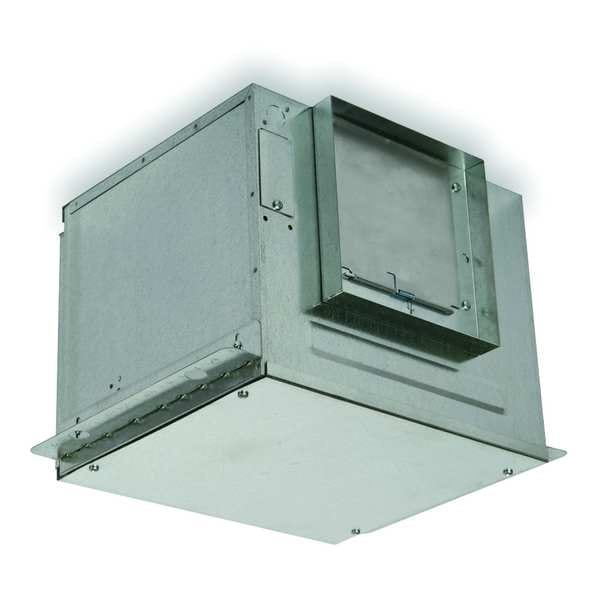

In-Line Cabinet Fan, 813 CFM
| Item | In-Line Ceiling Exhaust Fan |
|---|---|
| Standards | AMCA, UL/cUL |
| Recommended Accessories | 48C172 |
| Housing Width | 14-3/8 in |
| Sones @ 0.100-In. SP @ 5 Ft. | 3 |
| Motor Type | Permanent Split Capacitor |
| Sones @ 0.000-In. SP @ 5 Ft. | 3 |
| Dimension E | 8 in |
| Dimension D | 10 in |
| Dimension F | 16-7/8 in |
| CFM @ 0.500-In. SP | 672 |
| Inlet Height | 13-1/4 in |
| Housing Height | 14-1/2 in |
| Speed Control | 48C172 |
| CFM @ 0.750-In. SP | 603 |
| Full Load Amps | 3.77 |
| Max. Inlet Temp. | 104 Degrees F |
| Sones @ 0.125-In. SP @ 5 Ft. | 3 |
| Discharge Height | 8 in |
| Includes | Backdraft Damper, Mounting Brackets |
| Inlet Width | 16-7/8 in |
| Dimension A | 18 in |
| Housing Length | 18 in |
| Insulated | Yes |
| CFM @ 0.375-In. SP | 707 |
| CFM @ 0.125-In. SP | 777 |
| CFM @ 0.250-In. SP | 742 |
| Sones @ 0.250-In. SP @ 5 Ft. | 3 |
| Motor RPM | 1600 |
| Motor Insulation | Class B |
| CFM @ 1.000-In. SP | 527 |
| For Use With | General Ventilation Applications |
| Number of Speeds | 1 |
| Watts | 405 |
| Housing Material | Steel |
| CFM @ 0.000-In. SP | 813 |
| CFM @ 0.875-In. SP | 567 |
| Wheel Material | Polypropylene |
| Voltage | 115V AC |
| CFM @ 0.100-In. SP | 784 |
| Motor Enclosure | Open Dripproof |
| Mounting Position | Horizontal or Vertical |
| Singlewide / Doublewide | Singlewide |
| CFM @ 0.625-In. SP | 638 |
| Discharge Width | 10 in |
| Phase | 1 |
| CFM @ 0.200-In. SP | 755 |
| Hz | 60 |
| Dimension B | 14-3/8 in |
| Overall Width | 14-3/8 in |
| Overall Height | 14-1/2 in |
| Noise Level @ 0.000 in SP @ 5 ft | 3 sones |
| Frequency | 60 Hz |
| Noise Level @ 0.100 in SP @ 5 ft | 3 sones |
| Motor Speed | 1,600 rpm |
| Nameplate Voltage | 115 V AC |
| Sensor Type | None |
| Maximum Airflow | 813 cfm |
| Duct Width | 10 in |
| Discharge Direction | Horizontal, Vertical |
| Duct Shape | Rectangular |
| Heater | Without Heater |
| Vent Design | Ducted |
| Lighted | Without Light |
| Profile Height Family | High |
| Full Load Current | 3.77 A |
| Noise Level @ 0.250 in SP @ 5 ft | 3 sones |
| Overall Depth | 18 in |
| Includes Grill | No |
| Profile Width Family | Single-Wide |
| Exhaust Airflow @ 0.100 in SP | 784 cfm |
| Mounting Orientation | Vertical, Horizontal |
| Wattage | 405 W |
| Exhaust Airflow @ 0.200 in SP | 755 cfm |
| Blower Wheel Curve | Forward |
| Noise Level @ 0.125 in SP @ 5 ft | 3 sones |
| Exhaust Airflow @ 0.250 in SP | 742 cfm |
| Blower Wheel Material | Polypropylene |
| Maximum Noise Level | 3.5 sones |
| Maximum Inlet Temperature | 104 Degrees F |
| Exhaust Airflow @ 0.000 in SP | 813 cfm |
| Duct Height | 8 in |
| Housing Finish | Galvanized |
| Duct Diameter | Not Applicable |
| Fan Wattage | 405 W |
| Motor Output Power | 348 W |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
