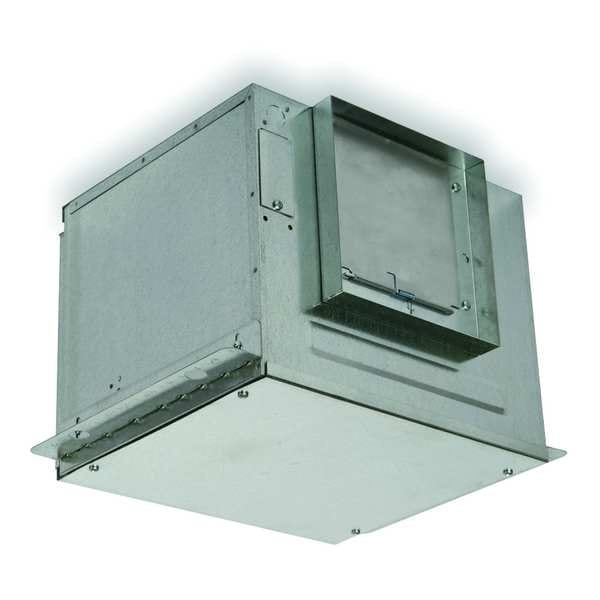

In-Line Cabinet Ventilator, 124 CFM, 115 V
| Item | In-Line Ceiling Exhaust Fan |
|---|---|
| For Use With | General Ventilation Applications |
| Voltage | 115V AC |
| Inlet Height | 6 in |
| Motor Insulation | Class B |
| Housing Material | Steel |
| CFM @ 0.100-In. SP | 112 |
| Dimension B | 10-5/8 in |
| Housing Height | 9 in |
| CFM @ 0.125-In. SP | 110 |
| Sones @ 0.125-In. SP @ 5 Ft. | 0.8 |
| Wheel Material | Polypropylene |
| Phase | 1 |
| Inlet Width | 12 in |
| Singlewide / Doublewide | Singlewide |
| Motor RPM | 950 |
| Watts | 20 |
| Motor Enclosure | Open Dripproof |
| Dimension A | 13-1/4 in |
| Insulated | Yes |
| Hz | 60 |
| Max. Inlet Temp. | 104 Degrees F |
| Speed Control | 48C172 |
| CFM @ 0.200-In. SP | 106 |
| CFM @ 0.000-In. SP | 124 |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 0.8 |
| Recommended Accessories | 48C172, 6WZP2 |
| Dimension D | 8 in |
| Dimension F | 12 in |
| CFM @ 0.375-In. SP | 77 |
| Includes | Backdraft Damper, Mounting Brackets |
| CFM @ 0.250-In. SP | 102 |
| Full Load Amps | 0.62 |
| Housing Width | 10-5/8 in |
| Motor Type | Permanent Split Capacitor |
| Sones @ 0.250-In. SP @ 5 Ft. | 0.9 |
| Discharge Height | 6 in |
| Housing Length | 13-1/4 in |
| Mounting Position | Horizontal or Vertical |
| Dimension E | 6 in |
| Discharge Width | 8 in |
| Standards | AMCA, CSA, UL/cUL |
| Sones @ 0.000-In. SP @ 5 Ft. | 0.8 |
| Green Certification or Other Recognition | ENERGY STAR Certified |
| Overall Width | 10-5/8 in |
| Overall Height | 9 in |
| Vent Design | Ducted |
| Lighted | Without Light |
| Wattage | 51 W |
| Housing Finish | Galvanized |
| Mounting Orientation | Vertical, Horizontal |
| Profile Height Family | High |
| Maximum Airflow | 124 cfm |
| Overall Depth | 13-1/4 in |
| Heater | Without Heater |
| Frequency | 60 Hz |
| Sensor Type | None |
| Includes Grill | No |
| Maximum Noise Level | 0.9 sones |
| Noise Level @ 0.250 in SP @ 5 ft | 0.9 sones |
| Discharge Direction | Horizontal, Vertical |
| Maximum Inlet Temperature | 104 Degrees F |
| Duct Height | 6 in |
| Exhaust Airflow @ 0.250 in SP | 102 cfm |
| Noise Level @ 0.000 in SP @ 5 ft | 0.8 sones |
| Duct Width | 8 in |
| Full Load Current | 0.3 A |
| Profile Width Family | Single-Wide |
| Noise Level @ 0.125 in SP @ 5 ft | 0.8 sones |
| Nameplate Voltage | 115 V AC |
| Blower Wheel Material | Polypropylene |
| Exhaust Airflow @ 0.100 in SP | 112 cfm |
| Exhaust Airflow @ 0.000 in SP | 124 cfm |
| Noise Level @ 0.100 in SP @ 5 ft | 0.7 sones |
| Exhaust Airflow @ 0.200 in SP | 106 cfm |
| Duct Shape | Rectangular |
| Blower Wheel Curve | Backward |
| Motor Speed | 950 RPM |
| Motor Output Power | 20 W |
| Duct Diameter | Not Applicable |
| Fan Wattage | 51 W |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
