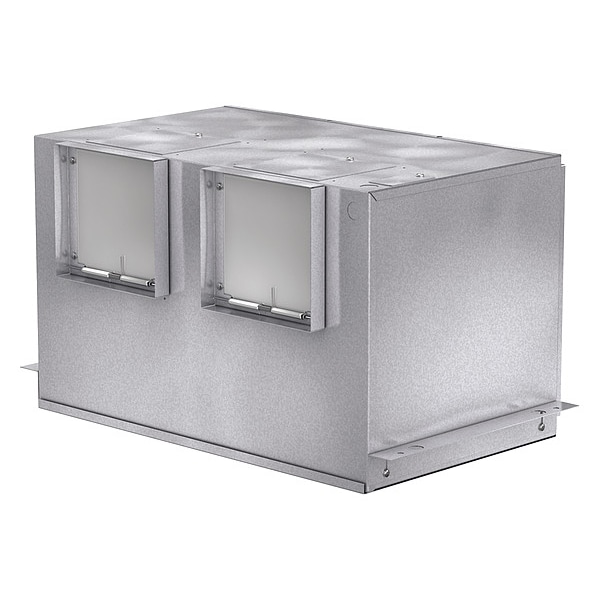

In-Line Ceiling Exhaust Fan, 2110 cfm cfm, 115V AC, Without Light
| Voltage | 115V AC |
|---|---|
| CFM @ 0.100-In. SP | 2110 cfm |
| Includes | Access Panel, Backdraft Damper, Mounting Brackets |
| Phase | 1 |
| Watts | 1,285 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 3 sones |
| Lighted | Without Light |
| Heater | Without Heater |
| Housing Length | 35 in |
| Housing Width | 14-3/4 in |
| CFM @ 0.000-In. SP | 2,167 cfm |
| Full Load Amps | 11.55 A |
| CFM @ 0.250-In. SP | 2,014 cfm |
| Standards | AMCA, cUL, cUS |
| Wheel Material | Polypropylene |
| Housing Height | 14-3/4 in |
| Hz | 60 |
| Motor RPM | 790 RPM |
| Item | In-Line Ceiling Exhaust Fan |
| Sones @ 0.125-In. SP @ 5 Ft. | 3 sones |
| Sones @ 0.000-In. SP @ 5 Ft. | 3 sones |
| Inlet Width | 32-3/4 in |
| Sones @ 0.250-In. SP @ 5 Ft. | 3 sones |
| Inlet Height | 13 in |
| Singlewide / Doublewide | Double-Wide |
| Discharge Direction | Horizontal, Vertical |
| Noise Level @ 0.100 in SP @ 5 ft | 3 sones |
| Housing Finish | Galvanized |
| Maximum Airflow | 2,167 cfm |
| Full Load Current | 11.55 A |
| Blower Wheel Curve | Forward |
| Duct Diameter | Not Applicable |
| Overall Height | 14-3/4 in |
| Motor Speed | 790 RPM |
| Noise Level @ 0.250 in SP @ 5 ft | 3 sones |
| Vent Design | Ducted |
| Exhaust Airflow @ 0.100 in SP | 2,110 cfm |
| Exhaust Airflow @ 0.000 in SP | 2,167 cfm |
| Overall Width | 14-3/4 in |
| Sensor Type | None |
| Includes Light Bulbs | No |
| Duct Height | 6 in |
| Profile Width Family | Double-Wide |
| Exhaust Airflow @ 0.250 in SP | 2,014 cfm |
| Profile Height Family | High |
| Motor Output Power | 560 W |
| Duct Shape | Square |
| Frequency | 60 Hz |
| Noise Level @ 0.000 in SP @ 5 ft | 3 sones |
| Duct Width | 6 in |
| Noise Level @ 0.125 in SP @ 5 ft | 3 sones |
| Fan Wattage | 1,285 W |
| Nameplate Voltage | 115 V AC |
| Maximum Noise Level | 5 sones |
| Overall Depth | 35 in |
| Blower Wheel Material | Polypropylene |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
