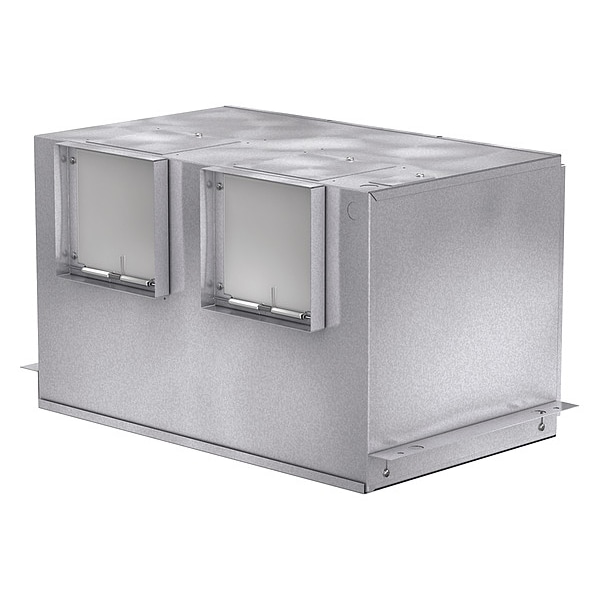

In-Line Ceiling Exhaust Fan, 3342 cfm cfm, 115V AC, Without Light
| Voltage | 115V AC |
|---|---|
| CFM @ 0.100-In. SP | 3342 cfm |
| Includes | Access Panel, Backdraft Damper, Mounting Brackets |
| Phase | 3 |
| Watts | 1,048.9 |
| Housing Material | Steel |
| Number of Speeds | Variable |
| Sones @ 0.100-In. SP @ 5 Ft. | 5 sones |
| Lighted | Without Light |
| Heater | Without Heater |
| Housing Width | 16-1/2 in |
| Full Load Amps | 6.18 A, 12.34 A |
| Standards | AMCA, UL/cUL 507 |
| Motor RPM | 820 RPM, 1,090 RPM |
| Wheel Material | Polypropylene |
| Motor Type | Electronically Commutated |
| Housing Height | 16-1/2 in |
| Housing Length | 45-1/2 in |
| CFM @ 0.000-In. SP | 3,401 cfm |
| CFM @ 0.250-In. SP | 2,264 cfm, 3,271 cfm |
| Item | In-Line Ceiling Exhaust Fan |
| Sones @ 0.000-In. SP @ 5 Ft. | 5 sones |
| Sones @ 0.250-In. SP @ 5 Ft. | 4.5 sones |
| Sones @ 0.125-In. SP @ 5 Ft. | 4.5 sones |
| Singlewide / Doublewide | Double-Wide |
| Inlet Width | 43-1/4 in |
| Inlet Height | 14-5/8 in |
| Overall Height | 16-1/2 in |
| Blower Wheel Material | Polypropylene |
| Profile Height Family | High |
| Overall Depth | 45-1/2 in |
| Sensor Type | None |
| Duct Width | 11 in |
| Duct Diameter | Not Applicable |
| Exhaust Airflow @ 0.000 in SP | 3,401 cfm |
| Motor Output Power | 745.7 W |
| Exhaust Airflow @ 0.100 in SP | 3,342 cfm |
| Profile Width Family | Double-Wide |
| Duct Shape | Square |
| Noise Level @ 0.000 in SP @ 5 ft | 5 sones |
| Exhaust Airflow @ 0.250 in SP | 2,264 cfm, 3,271 cfm |
| Includes Light Bulbs | No |
| Fan Wattage | 1,049 W |
| Housing Finish | Galvanized |
| Noise Level @ 0.250 in SP @ 5 ft | 4.5 sones |
| Discharge Direction | Horizontal, Vertical |
| Noise Level @ 0.100 in SP @ 5 ft | 5 sones |
| Motor Speed | 820 RPM, 1,090 RPM |
| Overall Width | 16-1/2 in |
| Noise Level @ 0.125 in SP @ 5 ft | 4.5 sones |
| Duct Height | 11 in |
| Maximum Noise Level | 5 sones |
| Maximum Airflow | 3,410 cfm |
| Nameplate Voltage | 115 V AC |
| Blower Wheel Curve | Forward |
| Vent Design | Ducted |
| Full Load Current | 6.18 A, 12.34 A |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
