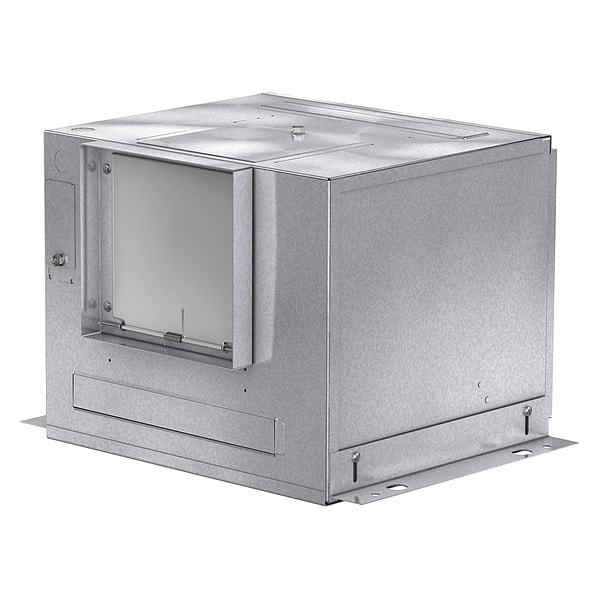

In-Line Ceiling Exhaust Fan, 400 cfm cfm, 115V AC, Without Light
| Voltage | 115V AC |
|---|---|
| CFM @ 0.100-In. SP | 400 cfm |
| Includes | Access Panel, Backdraft Damper, Mounting Brackets |
| Phase | 3 |
| Watts | 98 |
| Housing Material | Steel |
| Number of Speeds | Variable |
| Sones @ 0.100-In. SP @ 5 Ft. | 1.3 sones |
| Lighted | Without Light |
| Heater | Without Heater |
| CFM @ 0.250-In. SP | 212 cfm, 369 cfm |
| Housing Height | 11-1/4 in |
| Item | In-Line Ceiling Exhaust Fan |
| Wheel Material | Polypropylene |
| Standards | AMCA, cUL, cUS, Energy Star |
| Motor Type | Electronically Commutated |
| CFM @ 0.000-In. SP | 417 cfm |
| Motor RPM | 870 RPM, 1,260 RPM |
| Green Certification or Other Recognition | ENERGY STAR Certified |
| Full Load Amps | 0.66 A, 1.45 A |
| Housing Length | 14 in |
| Housing Width | 11-7/8 in |
| Sones @ 0.125-In. SP @ 5 Ft. | 2 sones |
| Sones @ 0.250-In. SP @ 5 Ft. | 1.3 sones |
| Inlet Width | 12-7/8 in |
| Inlet Height | 10 in |
| Singlewide / Doublewide | Single-Wide |
| Sones @ 0.000-In. SP @ 5 Ft. | 1.2 sones |
| Noise Level @ 0.100 in SP @ 5 ft | 1.3 sones |
| Exhaust Airflow @ 0.100 in SP | 400 cfm |
| Duct Shape | Square |
| Duct Diameter | Not Applicable |
| Overall Height | 11-1/4 in |
| Duct Width | 8 in |
| Motor Speed | 870 RPM, 1,260 RPM |
| Noise Level @ 0.000 in SP @ 5 ft | 1.2 sones |
| Overall Width | 11-7/8 in |
| Noise Level @ 0.125 in SP @ 5 ft | 2 sones |
| Full Load Current | 0.66 A, 1.45 A |
| Nameplate Voltage | 115 V AC |
| Duct Height | 8 in |
| Vent Design | Ducted |
| Includes Light Bulbs | No |
| Discharge Direction | Horizontal, Vertical |
| Motor Output Power | 745.7 W |
| Maximum Airflow | 417 cfm |
| Profile Height Family | High |
| Fan Wattage | 98 W |
| Profile Width Family | Single-Wide |
| Blower Wheel Curve | Forward |
| Blower Wheel Material | Polypropylene |
| Housing Finish | Galvanized |
| Exhaust Airflow @ 0.000 in SP | 417 cfm |
| Noise Level @ 0.250 in SP @ 5 ft | 1.3 sones |
| Exhaust Airflow @ 0.250 in SP | 212 cfm, 369 cfm |
| Sensor Type | None |
| Maximum Noise Level | 3 sones |
| Overall Depth | 14 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
