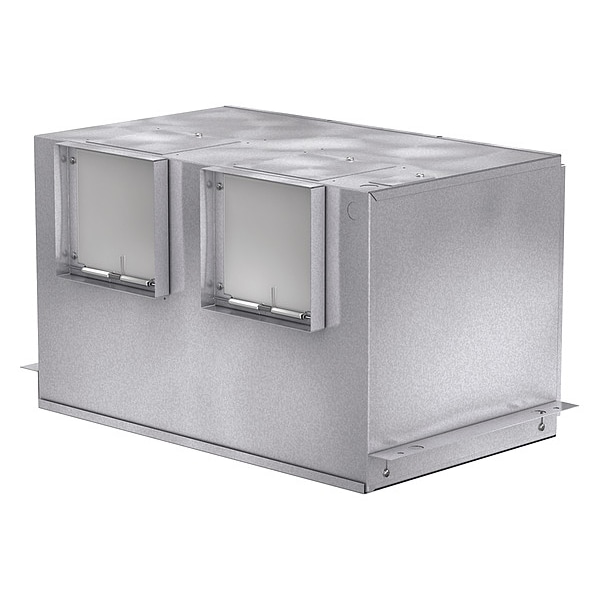

In-Line Ceiling Exhaust Fan, 699 cfm cfm, 120V AC, Without Light
| Voltage | 120V AC |
|---|---|
| CFM @ 0.100-In. SP | 699 cfm |
| Includes | Access Panel, Backdraft Damper, Mounting Brackets |
| Phase | 1 |
| Watts | 236 |
| Housing Material | Steel |
| Number of Speeds | Variable |
| Sones @ 0.100-In. SP @ 5 Ft. | 2 sones |
| Lighted | Without Light |
| Heater | Without Heater |
| Motor Insulation | Class B |
| Wheel Material | Polypropylene |
| Motor RPM | 1,800 RPM |
| Item | In-Line Ceiling Exhaust Fan |
| Housing Width | 14-3/8 in |
| Sones @ 0.250-In. SP @ 5 Ft. | 2 sones |
| Sones @ 0.125-In. SP @ 5 Ft. | 2 sones |
| Standards | AMCA, UL/cUL 507 |
| Hz | 60 |
| Inlet Height | 13-1/4 in |
| CFM @ 0.000-In. SP | 730 cfm |
| Motor Type | Electronically Commutated |
| Housing Length | 14-3/8 in |
| Inlet Width | 16-7/8 in |
| Sones @ 0.000-In. SP @ 5 Ft. | 12.1 sones |
| Singlewide / Doublewide | Single-Wide |
| Full Load Amps | 1.08 A, 3.51 A |
| Housing Height | 14-1/2 in |
| CFM @ 0.250-In. SP | 322 cfm, 654 cfm |
| Overall Width | 14-3/8 in |
| Maximum Airflow | 737 cfm |
| Duct Shape | Rectangular |
| Sensor Type | None |
| Nameplate Voltage | 120 V AC |
| Exhaust Airflow @ 0.100 in SP | 699 cfm |
| For Cut-Out Width | 18-3/8 in |
| Duct Diameter | Not Applicable |
| For Cut-Out Length | 14-3/4 in |
| Exhaust Airflow @ 0.000 in SP | 730 cfm |
| Housing Finish | Galvanized |
| Duct Width | 10 in |
| Full Load Current | 1.08 A, 3.51 A |
| Noise Level @ 0.000 in SP @ 5 ft | 12.1 sones |
| Noise Level @ 0.100 in SP @ 5 ft | 0.4 sones, 2 sones |
| Blower Wheel Material | Polypropylene |
| Profile Width Family | Single-Wide |
| Fan Wattage | 236 W |
| Blower Wheel Curve | Forward |
| Exhaust Airflow @ 0.250 in SP | 322 cfm, 654 cfm |
| Includes Light Bulbs | No |
| Noise Level @ 0.125 in SP @ 5 ft | 2 sones |
| Overall Height | 14-1/2 in |
| Maximum Noise Level | 9.2 sones |
| Duct Height | 8 in |
| Profile Height Family | High |
| Discharge Direction | Horizontal, Vertical |
| Frequency | 60 Hz |
| Motor Speed | 1,800 RPM |
| Overall Depth | 14-3/8 in |
| Motor Output Power | 186.4 W |
| Noise Level @ 0.250 in SP @ 5 ft | 2 sones |
| Vent Design | Ducted |
| Mounting Orientation | Horizontal |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
