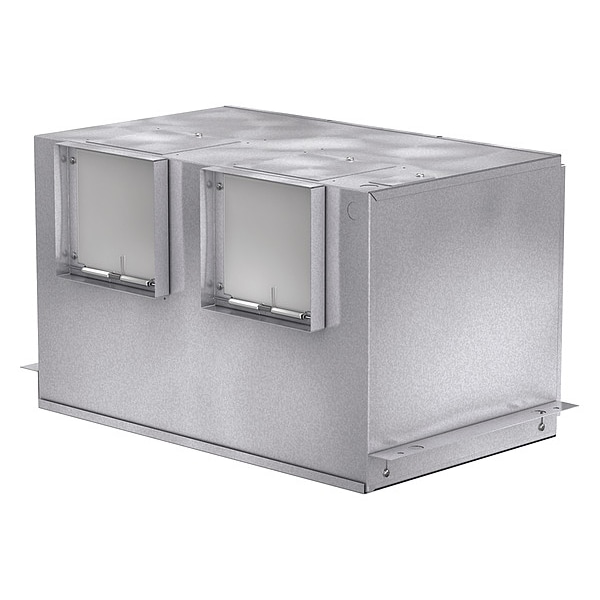

In-Line Ceiling Exhaust Fan, 827 cfm cfm, 115V AC, Without Light
| Voltage | 115V AC |
|---|---|
| CFM @ 0.100-In. SP | 827 cfm |
| Includes | Access Panel, Backdraft Damper, Mounting Brackets |
| Phase | 1 |
| Watts | 352 |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Sones @ 0.100-In. SP @ 5 Ft. | 1.1 sones |
| Lighted | Without Light |
| Heater | Without Heater |
| Motor RPM | 1,100 RPM |
| Housing Length | 11-5/8 in |
| Wheel Material | Polypropylene |
| Housing Height | 11-5/8 in |
| CFM @ 0.250-In. SP | 758 cfm |
| Standards | AMCA, UL/cUL 507 |
| Item | In-Line Ceiling Exhaust Fan |
| Hz | 60 |
| Housing Width | 11-5/8 in |
| Motor Insulation | Class B |
| CFM @ 0.000-In. SP | 766 cfm |
| Full Load Amps | 3.16 A |
| Inlet Height | 10-1/2 in |
| Inlet Width | 22-5/8 in |
| Singlewide / Doublewide | Double-Wide |
| Sones @ 0.250-In. SP @ 5 Ft. | 1.1 sones |
| Sones @ 0.125-In. SP @ 5 Ft. | 1.1 sones |
| Sones @ 0.000-In. SP @ 5 Ft. | 2.6 sones |
| Noise Level @ 0.125 in SP @ 5 ft | 1.1 sones |
| Exhaust Airflow @ 0.100 in SP | 827 cfm |
| Duct Width | 8 in |
| Duct Shape | Square |
| Frequency | 60 Hz |
| Overall Width | 11-5/8 in |
| Full Load Current | 3.16 A |
| Discharge Direction | Horizontal, Vertical |
| Blower Wheel Material | Polypropylene |
| Duct Height | 8 in |
| Exhaust Airflow @ 0.000 in SP | 766 cfm |
| Overall Depth | 11-5/8 in |
| Profile Width Family | Double-Wide |
| For Cut-Out Length | 23-3/4 in |
| Maximum Noise Level | 4.9 sones |
| Nameplate Voltage | 115 V AC |
| Sensor Type | None |
| Motor Output Power | 352 W |
| For Cut-Out Width | 11-3/4 in |
| Exhaust Airflow @ 0.250 in SP | 758 cfm |
| Mounting Orientation | Horizontal |
| Housing Finish | Galvanized |
| Fan Wattage | 352 W |
| Profile Height Family | High |
| Duct Diameter | Not Applicable |
| Vent Design | Ducted |
| Overall Height | 11-5/8 in |
| Includes Light Bulbs | No |
| Blower Wheel Curve | Forward |
| Maximum Airflow | 766 cfm |
| Noise Level @ 0.100 in SP @ 5 ft | 1.1 sones |
| Noise Level @ 0.250 in SP @ 5 ft | 1.1 sones |
| Noise Level @ 0.000 in SP @ 5 ft | 2.6 sones |
| Motor Speed | 1,100 RPM |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
