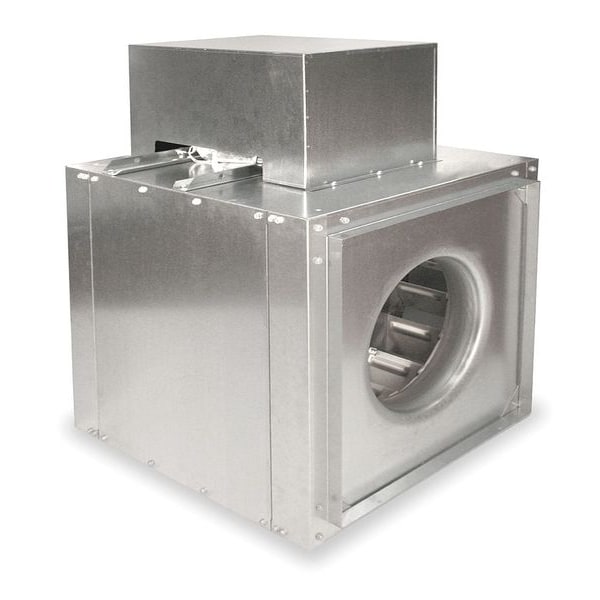

Inline Blower, 11 In, w/ 1/4 HP Drive Pkg
| Wheel Dia. (In.) | 11 |
|---|---|
| Voltage | 115/230 |
| Motor HP | 0.25 |
| Inlet Dia. (In.) | 7-3/4 |
| CFM @ 0.250-In. SP | 687 |
| Inlet Height (In.) | 11-7/8 |
| Mounting Position | Horizontal, Vertical |
| Sones @ 0.000-In. SP @ 5 Ft. | 17.5 |
| Blower RPM | 1,833 |
| Wheel Material | Aluminum |
| Outlet Dia. (In.) | 7-3/4 |
| Dimension D (In.) | 1-1/2 |
| CFM @ 0.000-In. SP | 756 |
| Housing Material | Steel |
| Dimension E (In.) | 17-3/4 |
| Shaft Dia. (In.) | 3/4 |
| Drive Type | Belt Drive |
| CFM @ 0.375-In. SP | 650 |
| Motor Enclosure | Open Dripproof |
| Inlet Width (In.) | 11-7/8 |
| Phase | 1 |
| Bearing Type | Sealed Pillow Block |
| Hz | 60 |
| CFM @ 0.125-In. SP | 720 |
| CFM @ 0.750-In. SP | 524 |
| Dimension A (In.) | 17-1/8 |
| Motor Type | Capacitor-Start |
| Max. BHP | 0.26 |
| Max. Inlet Temp. (Deg. F) | 160 |
| Assembled/Unassembled | Unassembled |
| Width (In.) | 15 |
| Item | In-Line Duct Blower |
| Dimension C (In.) | 11-7/8 |
| Agency Compliance | AMCA Sound & Air, UL-705 |
| Wheel Type | Backward-Inclined |
| Full Load Amps | 5.6/2.8 |
| Motor RPM | 1,725 |
| Sones @ 0.125-In. SP @ 5 Ft. | 17.2 |
| Stock No. | 2RB88 |
| Max. Motor Height (In.) | 12-1/2 |
| Includes | Access Panel |
| Dimension F (In.) | 13 |
| Dimension B (In.) | 21 |
| CFM @ 1.000-In. SP | 424 |
| Dimension G (In.) | 13-1/4 |
| Sones @ 0.250-In. SP @ 5 Ft. | 16.9 |
| CFM @ 0.500-In. SP | 613 |
| Height (In.) | 15 |
| Max. Depth (In.) | 21 |
| Outlet Width (In.) | 11-7/8 |
| Type | Belt Drive Centrifugal, With Drive Package |
| Outlet Height (In.) | 11-7/8 |
| CFM @ 0.625-In. SP | 570 |
| Sound Level | 16.9 sones @ 0.250 in SP and 5 ft, 17.2 sones @ 0.125 in SP and 5 ft, 17.5 sones @ 0.000 in SP and 5 ft |
| Airflow @ 0.750 in SP | 524 cfm |
| Overall Depth | 21 in |
| Application | Indoor Clean Air Applications |
| Current | 5.6/2.8 A |
| Features | Bearing Cover and Motor Cover Included to Help in Lengthening Service Life, Collars Simplify Duct Connections, and Panels on Each Side to Provide Quick Access to Internal Fan Components |
| For Air Type | Clean |
| Mounting Orientation | Multiposition |
| Inlet Duct Connection Height | 11-7/8 in |
| Outlet Diameter | 7-3/4 in |
| Inlet Duct Connection Width | 11-7/8 in |
| Airflow @ 0.625 in SP | 570 cfm |
| Outlet Duct Connection Width | 11-3/4 in |
| Shaft Diameter | 3/4 in |
| Airflow @ 0.000 in SP | 756 cfm |
| Market | Commercial, Industrial |
| For Location | Indoor |
| Standards | AMCA Certified, UL 705 |
| Outlet Duct Connection Height | 11-3/4 in |
| Nameplate Voltage | 115/230V AC |
| Airflow @ 0.250 in SP | 687 cfm |
| Assembly | Unassembled |
| For Ventilation Type | Exhaust, Supply, Make-Up, Return |
| Motor Horsepower | 0.25 HP |
| Overall Height | 15 in |
| Motor Speed | 1,725 rpm |
| Maximum Fan Speed | 1,833 rpm |
| Housing Material Finish | Galvanized |
| Frequency | 60 Hz |
| Airflow @ 0.375 in SP | 650 cfm |
| Overall Width | 15 in |
| Maximum Inlet Air Temperature | 160 deg F |
| Includes Drive Package | Yes |
| Airflow @ 0.125 in SP | 720 cfm |
| Wheel Diameter | 11 in |
| Airflow @ 0.500 in SP | 613 cfm |
| Inlet Diameter | 7.7 in |
| Manufacturer Warranty Length | 1 yr |
| Includes Motor | Yes |
| Airflow @ 1.000 in SP | 424 cfm |
| Maximum Static Pressure | 1 in wc |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
