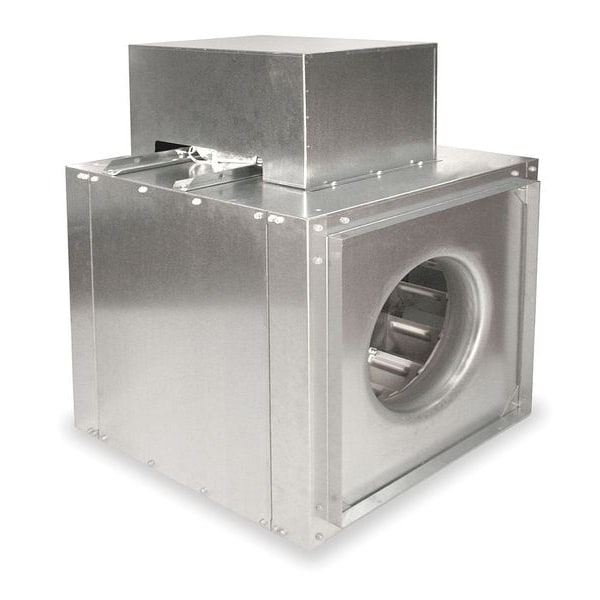

Inline Blower, 11 In, w/ 3/4 HP Drive Pkg
| Wheel Dia. (In.) | 11 |
|---|---|
| Voltage | 208-230/460 |
| Motor HP | 0.75 |
| Max. Depth (In.) | 21 |
| CFM @ 0.125-In. SP | 1,065 |
| Dimension F (In.) | 13 |
| Inlet Height (In.) | 11-7/8 |
| Dimension C (In.) | 11-7/8 |
| Shaft Dia. (In.) | 3/4 |
| Mounting Position | Horizontal, Vertical |
| Max. Inlet Temp. (Deg. F) | 160 |
| Phase | 3 |
| Sones @ 0.250-In. SP @ 5 Ft. | 28 |
| Sones @ 0.125-In. SP @ 5 Ft. | 28 |
| Max. BHP | 0.79 |
| Assembled/Unassembled | Unassembled |
| Blower RPM | 2,645 |
| Includes | Access Panel |
| Dimension B (In.) | 21 |
| Width (In.) | 15 |
| Sones @ 0.000-In. SP @ 5 Ft. | 28 |
| Type | Belt Drive Centrifugal, With Drive Package |
| Wheel Type | Backward-Inclined |
| Wheel Material | Aluminum |
| Full Load Amps | 2.8-2.7/1.4 |
| CFM @ 1.000-In. SP | 894 |
| Outlet Dia. (In.) | 7-3/4 |
| Agency Compliance | AMCA Sound & Air, UL-705 |
| Drive Type | Belt Drive |
| CFM @ 2.000-In. SP | 635 |
| CFM @ 1.250-In. SP | 835 |
| Outlet Height (In.) | 11-7/8 |
| CFM @ 0.750-In. SP | 945 |
| CFM @ 0.625-In. SP | 970 |
| Dimension G (In.) | 13-1/4 |
| Max. Motor Height (In.) | 12-1/2 |
| Motor Type | Three Phase |
| CFM @ 1.75-In. SP | 705 |
| Item | In-Line Duct Blower |
| Height (In.) | 15 |
| Dimension A (In.) | 17-1/8 |
| Bearing Type | Sealed Pillow Block |
| Motor RPM | 1,725 |
| Stock No. | 2RB88 |
| CFM @ 0.500-In. SP | 995 |
| Outlet Width (In.) | 11-7/8 |
| Motor Enclosure | Open Dripproof |
| Housing Material | Steel |
| Dimension E (In.) | 17-3/4 |
| Hz | 60 |
| Inlet Dia. (In.) | 7-3/4 |
| Inlet Width (In.) | 11-7/8 |
| CFM @ 0.000-In. SP | 1,090 |
| CFM @ 0.250-In. SP | 1,041 |
| Dimension D (In.) | 1-1/2 |
| CFM @ 0.375-In. SP | 1,018 |
| CFM @ 1.500-In. SP | 773 |
| Application | Indoor Clean Air Applications |
| Manufacturer Warranty Length | 1 yr |
| Outlet Duct Connection Width | 11-3/4 in |
| Airflow @ 1.75 in SP | 705 cfm |
| Airflow @ 1.000 in SP | 894 cfm |
| Outlet Duct Connection Height | 11-3/4 in |
| Airflow @ 0.750 in SP | 945 cfm |
| Overall Width | 15 in |
| Motor Speed | 1,725 rpm |
| Mounting Orientation | Multiposition |
| Airflow @ 0.250 in SP | 1,041 cfm |
| Nameplate Voltage | 208-230/460V AC |
| Maximum Fan Speed | 2,645 rpm |
| Frequency | 60 Hz |
| Airflow @ 0.125 in SP | 1,065 cfm |
| Airflow @ 1.250 in SP | 835 cfm |
| For Location | Indoor |
| Inlet Duct Connection Width | 11-7/8 in |
| Features | Bearing Cover and Motor Cover Included to Help in Lengthening Service Life, Collars Simplify Duct Connections, and Panels on Each Side to Provide Quick Access to Internal Fan Components |
| Includes Drive Package | Yes |
| Market | Commercial, Industrial |
| Wheel Diameter | 11 in |
| Airflow @ 0.000 in SP | 1,090 cfm |
| Maximum Static Pressure | 2.5 in wc |
| Includes Motor | Yes |
| Airflow @ 0.500 in SP | 995 cfm |
| For Air Type | Clean |
| Outlet Diameter | 7-3/4 in |
| Inlet Diameter | 7.7 in |
| Standards | AMCA Certified, UL 705 |
| Shaft Diameter | 3/4 in |
| Current | 2.8-2.7/1.4 A |
| Maximum Inlet Air Temperature | 160 deg F |
| Overall Depth | 21 in |
| Airflow @ 0.375 in SP | 1,018 cfm |
| Assembly | Unassembled |
| Airflow @ 2.000 in SP | 635 cfm |
| Airflow @ 2.500 in SP | 395 cfm |
| Housing Material Finish | Galvanized |
| Overall Height | 15 in |
| Airflow @ 1.500 in SP | 773 cfm |
| Airflow @ 0.625 in SP | 970 cfm |
| Motor Horsepower | 0.75 HP |
| For Ventilation Type | Exhaust, Supply, Make-Up, Return |
| Sound Level | 28 sones @ 0.000 in SP and 5 ft, 28 sones @ 0.125 in SP and 5 ft, 28 sones @ 0.250 in SP and 5 ft |
| Inlet Duct Connection Height | 11-7/8 in |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
