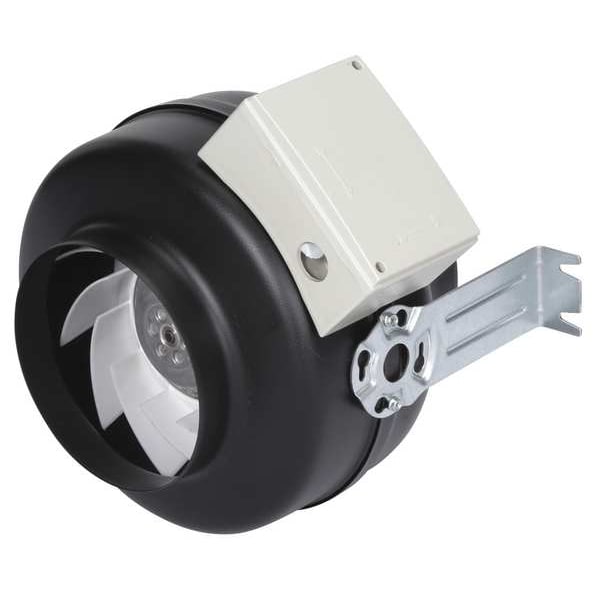

Inline Centrifugal Duct Fan, 10" L, 9" W
| Item | In-Line Duct Fan |
|---|---|
| Housing Material | Steel |
| Fits Duct Dia. | 6 in |
| Voltage | 120 V |
| Max. Amps | 0.72 |
| Max. Wattage | 330/690 |
| Number of Speeds | 1 |
| Housing Dia. | 13 in |
| Length | 10 in |
| Motor RPM | 2,450 |
| Speed Control | Yes |
| Phase | 1 |
| Mounting Position | Horizontal or Vertical |
| Flange Width | 1 in |
| Standards | cULus |
| CFM @ 0.100-In. SP | 149 |
| Width | 9 in |
| Max. Inlet Temp. | 104 Degrees F |
| CFM @ 0.600-In. SP | 100 cfm |
| Housing Finish | Black Epoxy Coating |
| Motor Enclosure | Totally Enclosed |
| CFM @ 0.200-In. SP | 271 cfm |
| CFM @ 0.800-In. SP | 34 cfm |
| CFM @ 0.375-In. SP | 204 cfm |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Inlet and Outlet Dia. | 6 in |
| Hz | 60 |
| CFM @ 0.750-In. SP | 68 cfm |
| CFM @ 0.125-In. SP | 281 cfm |
| Includes | Mounting Bracket |
| CFM @ 0.250-In. SP | 237 cfm |
| CFM @ 0.500-In. SP | 137 cfm |
| Bearing Type | Ball Bearing |
| Green Certification or Other Recognition | ENERGY STAR |
| CFM @ 0.400-In. SP | 171 cfm |
| CFM @ 0.000-In. SP | 337 |
| CFM @ 0.450-In. SP | 171 cfm |
| High-Efficiency Motor | No |
| Overall Width | 9 in |
| Airflow @ 0.000 in SP | 337 cfm |
| Speed Controllable | Yes |
| Application | General Purpose |
| Mounting Orientation | Horizontal, Vertical |
| Motor Speed | 2,450 rpm |
| Duct Diameter | 6 in |
| Nameplate Voltage | 120V AC |
| Maximum Inlet Air Temperature | 104 deg F |
| Motor Output Power | 111.9 W |
| For Fan Type | Tubeaxial |
| Motor IP Rating | IP54 |
| Speed Control Included | Yes |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
