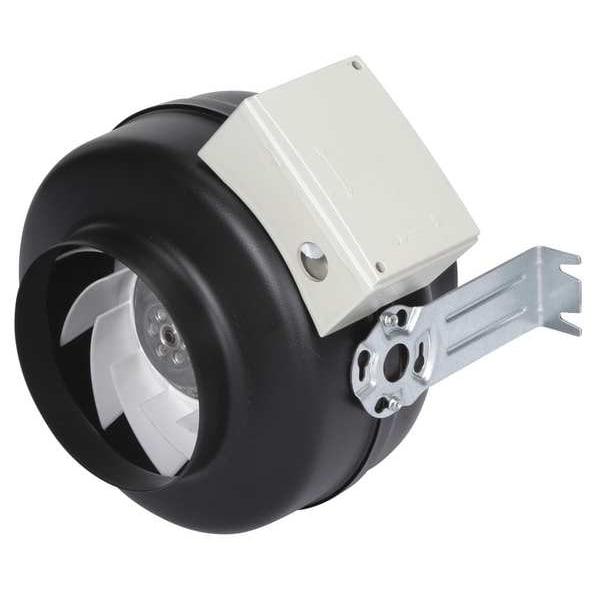

Inline Centrifugal Duct Fan, 10" L, 9" W
| Item | In-Line Duct Fan |
|---|---|
| Housing Material | Steel |
| Fits Duct Dia. | 10 in |
| Voltage | 120 V |
| Max. Amps | 1.7 |
| Max. Wattage | 197 |
| Number of Speeds | 1 |
| Housing Dia. | 13 in |
| Length | 10 in |
| Motor RPM | 2,470 |
| CFM @ 0.250-In. SP | 446 cfm |
| Width | 9 in |
| CFM @ 0.000-In. SP | 630 |
| Housing Finish | Black Epoxy Coating |
| Mounting Position | Horizontal or Vertical |
| CFM @ 0.400-In. SP | 319 cfm |
| CFM @ 0.125-In. SP | 569 cfm |
| Includes | Mounting Bracket |
| CFM @ 0.500-In. SP | 249 cfm |
| Max. Inlet Temp. | 104 Degrees F |
| Phase | 1 |
| CFM @ 0.450-In. SP | 319 cfm |
| Inlet and Outlet Dia. | 10 in |
| CFM @ 0.800-In. SP | 63 cfm |
| Bearing Type | Ball Bearing |
| Green Certification or Other Recognition | ENERGY STAR |
| CFM @ 0.600-In. SP | 191 cfm |
| Standards | cULus |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| CFM @ 0.100-In. SP | 570 |
| CFM @ 0.750-In. SP | 126 cfm |
| Motor Enclosure | Totally Enclosed |
| CFM @ 0.200-In. SP | 507 cfm |
| CFM @ 0.375-In. SP | 382 cfm |
| Flange Width | 1 in |
| Hz | 60 |
| Speed Control | Yes |
| Airflow @ 0.000 in SP | 630 cfm |
| Duct Diameter | 10 in |
| Overall Width | 9 in |
| Motor Output Power | 186.4 W |
| Application | General Purpose |
| High-Efficiency Motor | No |
| Motor IP Rating | IP54 |
| Maximum Inlet Air Temperature | 104 deg F |
| Speed Controllable | Yes |
| Mounting Orientation | Horizontal, Vertical |
| Motor Speed | 2,470 rpm |
| Speed Control Included | Yes |
| Nameplate Voltage | 120V AC |
| For Fan Type | Tubeaxial |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
