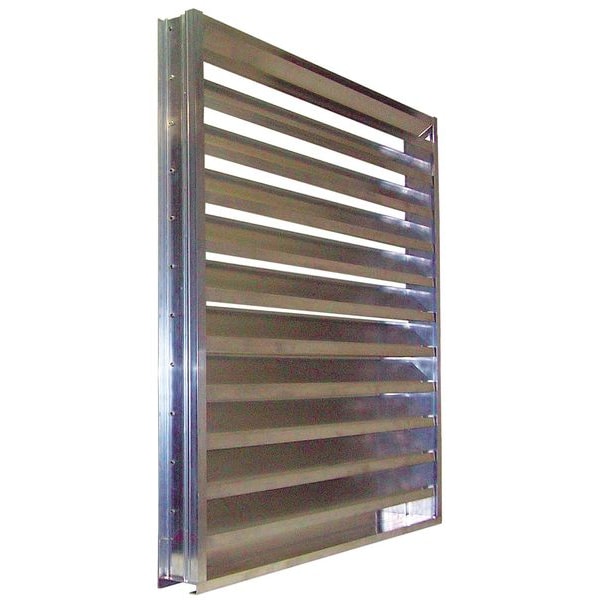

Intake Louver, 60x60
| Item | 60"H 60"W Drnbl Extrd Alu Intake Louver |
|---|---|
| Louver Item | Intake Louver |
| Louver Type | Stationary Blade |
| Louver Free Area | 12.963 sq ft |
| For Use With | Intake or Exhaust Applications |
| Min. Wall Opening (In.) | 60H x 60W |
| Louver Max. Intake | 8,187 cfm |
| Louver Max. Exhaust | 10,688 cfm |
| Louver Material | Extruded Aluminum |
| Intake Louver Inside Width | 57 in |
| Intake Louver Outside Height | 59-1/2 in |
| Inside Height (In.) | 54 |
| Outside Width (In.) | 59-1/2 |
| Max. Velocity (FPM) | 3,000 fpm |
| Flange Width (In.) | 1-1/4 |
| Blade Angle (Deg.) | 45 |
| Includes | Bird Screen |
| Number of Blades | 12 |
| Inside Width | 57-3/4 in |
| Frame Type | Hat Channel |
| Outside Width | 59-1/2 in |
| Outside Height | 59-1/2 in |
| Blade Type | Drainable |
| Maximum Outside Width | 59-1/2 in |
| Frame Depth | 4 in |
| Material | Aluminum |
| Louver Maximum Intake | 8,187 cfm |
| Rough Opening Height | 60 in |
| Maximum Exhaust | 10,688 cfm |
| Minimum Outside Width | 59-1/2 in |
| Finish | Mill |
| Maximum Air Velocity | 3,000 fpm |
| Intake or Exhaust Application | Exhaust, Intake |
| Inside Height | 54 in |
| Blade Angle | 45 deg |
| Beginning Point of Water Penetration | 1,031 fpm |
| Rough Opening Width | 60 in |
| Free Area | 13.3 sq ft |
| Mounting Style | Recess Mount |
| Flange Width | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
