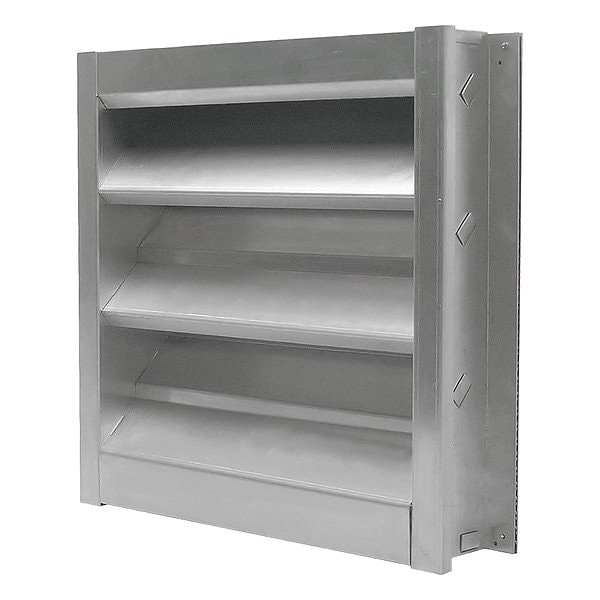

Intake Louver, Fixed, 3003 Aluminum
| Item | 42"H 42"W Non-Drnbl Alu Modular Louver |
|---|---|
| Louver Item | Intake Louver |
| Louver Type | Stationary Blade |
| Louver Free Area | 5.496 sq ft |
| For Use With | Intake or Exhaust Applications |
| Min. Wall Opening (In.) | 42H x 42W |
| Louver Max. Intake | 3,876 cfm |
| Louver Max. Exhaust | 5,543 cfm |
| Louver Material | 3003 Aluminum |
| Intake Louver Inside Width | 39 in |
| Intake Louver Outside Height | 41-1/2 in |
| Mounting Hole Size (In.) | 3/32 |
| Number of Blades | 9 |
| Inside Height (In.) | 37 |
| Flange Width (In.) | 1-1/4 |
| Blade Angle (Deg.) | 45 |
| Includes | Bird Screen |
| Outside Width (In.) | 41-1/2 |
| Max. Velocity (FPM) | 4,875 fpm |
| Rough Opening Height | 42 in |
| Outside Width | 41-1/2 in |
| Inside Height | 37 in |
| Material | Aluminum |
| Blade Angle | 45 deg |
| Frame Depth | 4 in |
| Outside Height | 41-1/2 in |
| Finish | Mill |
| Flange Width | Not Applicable |
| Mounting Style | Flush Mount |
| Beginning Point of Water Penetration | 709 fpm |
| Minimum Outside Width | 41-1/2 in |
| Maximum Exhaust | 5,543 cfm |
| Intake or Exhaust Application | Exhaust, Intake |
| Blade Type | Non-Drainable |
| Rough Opening Width | 42 in |
| Frame Type | Hat Channel |
| Inside Width | 39 in |
| Material Grade | 3003 |
| Free Area | 5.4 sq ft |
| Louver Maximum Intake | 3,876 cfm |
| Maximum Air Velocity | 4,875 fpm |
| Maximum Outside Width | 41-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
