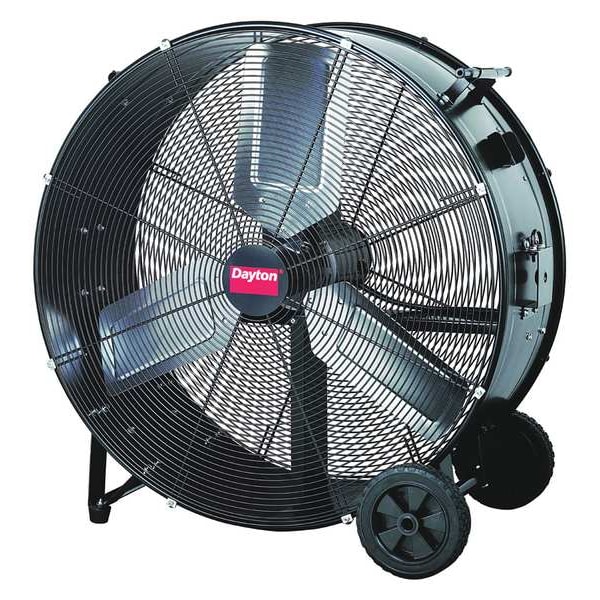

Light Duty Industrial Fan, 42 in Blade Dia, Non-Oscillating, 115VAC, 12500/16800 CFM
| Blade Diameter | 42 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.75 HP |
| Air Flow | 12,500/16,800 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 75 dBA |
| Item | Industrial Fan |
| Fan Mounting Location | Floor |
| Watts | 960/820 W |
| Shaft Dia. | 5/8 in |
| Motor Enclosure | Open Air Over |
| Width | 44-3/4 in |
| Height | 44-1/2 in |
| Assembled | Yes |
| CFM/Watt | 18.5 |
| Bearing Type | Ball |
| Guard Material | Steel |
| Includes | Wheels |
| Fan Style | Light Duty |
| CFM Low | 12,500 |
| Motor Insulation | Class B |
| Environmental Applications | Industrial |
| CFM High | 16,800 |
| Wire Guard Finish | Powder Coated |
| Motor RPM | 850/750 RPM |
| Air Velocity @ 10 Ft. | 600/400 fpm |
| Standards | UL/cUL 507, OSHA 1910.212 |
| Mobile/Stationary | Mobile |
| Hz | 60 |
| Max. Ambient Temp. | 104 deg F |
| Application | Spot Cooling and People Cooling |
| Thermal Protection | Automatic Reset |
| Fan Accessory Style | Standard |
| Number of Blades | 3 |
| Housing Material | Steel |
| Max. Depth | 20-3/4 in |
| Motor Type | Permanent Split Capacitor |
| RPM | 850/750 |
| Amps | 7.9/6.0 |
| Color | Black |
| Assembly Required | Yes |
| Height Adjustment | Fixed Height |
| Fan Housing Material | Steel |
| Wheeled Base | Mobile |
| Wheel Material | Plastic/Rubber |
| Fan Cord Length | 10 ft |
| Wheel Dia. | 7 in |
| Depth | 20-3/4 in |
| NEMA Plug Configuration | 5-15p |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
