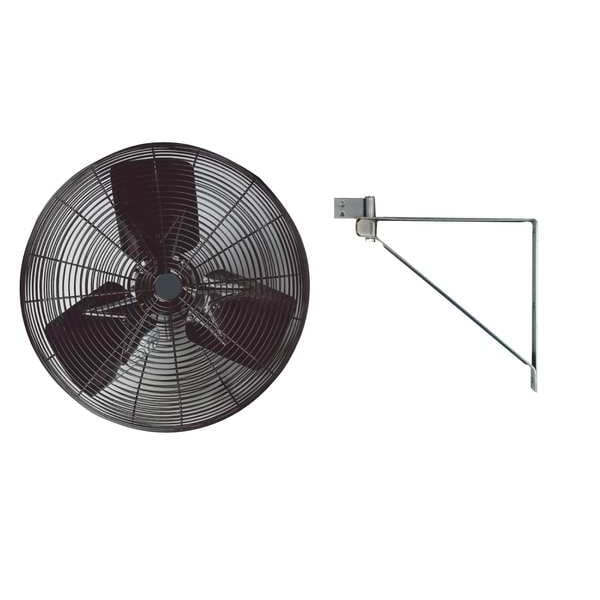

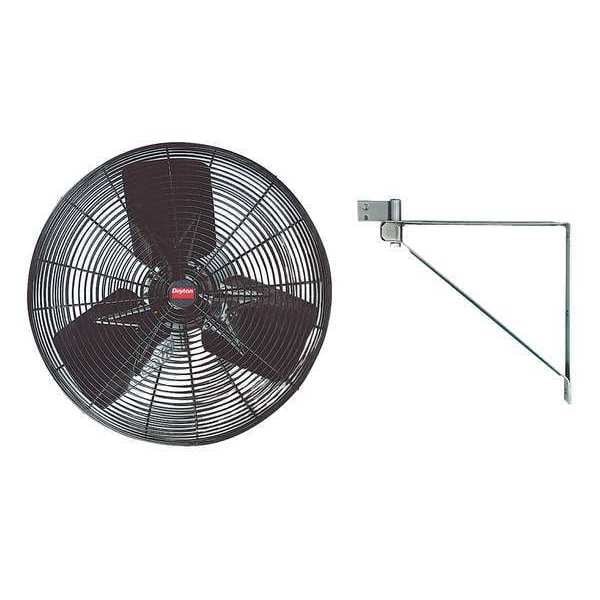

Light Duty Industrial Fan, Ceiling, Wall Mount, 20 in Blade Dia, 115V, 2,600/3,700 cfm
| Blade Diameter | 20 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.125 HP |
| Air Flow | 2,600/3,700 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 72 dBA |
| Item | Industrial Fan |
| Application | Spot Cooling and People Cooling |
| Thermal Protection | Automatic Reset |
| Width | 23 in |
| CFM/Watt | 15.1/15.0 |
| Mobile/Stationary | Stationary |
| CFM Low | 2,600 |
| Outside Dia. | 23 in |
| Assembled | No |
| CFM High | 3,700 |
| Fan Accessory Style | Standard |
| Standards | cULus Listed, OSHA compliant wire guards |
| Motor Insulation | Class B |
| Number of Conductors | 3 |
| Requires | Assembly |
| Fan Mounting Location | Wall, Ceiling |
| Motor Type | Permanent Split Capacitor |
| Guard Material | Steel |
| Shaft Dia. | 12 mm |
| Air Velocity @ 20 Ft. | 400/350 fpm |
| Motor Enclosure | Open Air Over |
| NEMA Plug Configuration | 5-15p |
| Max. Depth | 23 in |
| Watts | 240/175 W |
| Environmental Applications | Industrial |
| Wire Guard Finish | Gloss Powder Coated |
| Height | 29-1/4 in |
| Housing Material | Steel |
| Bearing Type | Ball |
| Fan Style | Light Duty |
| Hz | 60 |
| Motor RPM | 1,200/1,000 RPM |
| Air Velocity @ 40 Ft. | 200/190 fpm |
| Air Velocity @ 10 Ft. | 820/580 fpm |
| Includes | Wall/Ceiling Bracket and Secondary Safety Support Cable |
| Number of Blades | 3 |
| Air Velocity @ 60 Ft. | 150/130 fpm |
| Max. Ambient Temp. | 104 deg F |
| Depth | 23 in |
| Assembly Required | Yes |
| Fan Cord Length | 9 ft |
| Color | Black |
| RPM | 1200/1000 |
| Height Adjustment | Fixed Height |
| Fan Housing Material | Steel |
| Amps | 2.0/1.5 |
| Wheeled Base | Stationary |
| Material | Steel |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
