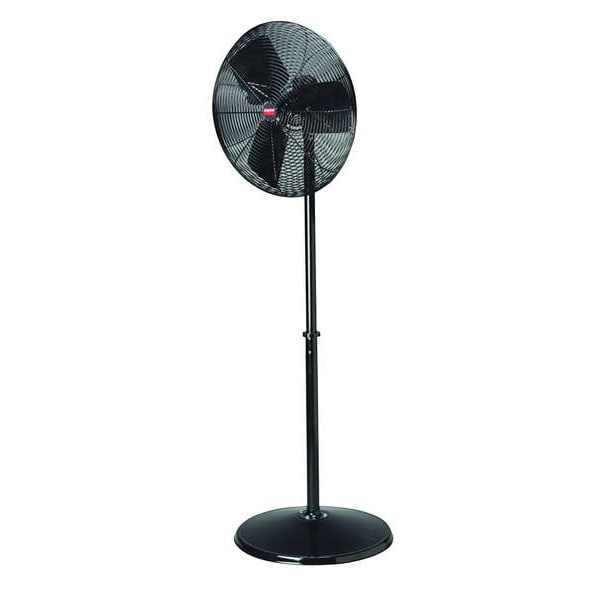

Light Duty Industrial Fan, Pedestal Mount, 18 in Blade Dia, 115V, 2,460/3,480 cfm, Non-Oscillating
| Blade Diameter | 18 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.2 HP |
| Air Flow | 2,460/3,480 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 59 dBA |
| Item | Industrial Fan |
| Motor Enclosure | Open Air Over |
| Max. Depth | 21-5/8 in |
| Thermal Protection | Automatic Reset |
| Height | 65 in |
| Number of Conductors | 3 |
| Includes | Pedestal, Column and Mounting Hardware |
| Mobile/Stationary | Stationary |
| Max. Ambient Temp. | 104 deg F |
| Shaft Dia. | 12 mm |
| Width | 27 in |
| Fan Style | Light Duty |
| Motor RPM | 1,100/950 RPM |
| Watts | 200/160 W |
| Air Velocity @ 40 Ft. | 120/80 fpm |
| NEMA Plug Configuration | 5-15p |
| Application | Spot Cooling and People Cooling |
| CFM/Watt | 26.2/25.6 |
| CFM High | 3,480 |
| Requires | Assembly |
| Motor Insulation | Class B |
| Air Velocity @ 10 Ft. | 480/420 fpm |
| Number of Blades | 3 |
| Air Velocity @ 60 Ft. | 24/0 fpm |
| Wire Guard Finish | Gloss Powder Coated |
| Air Velocity @ 20 Ft. | 330/273 fpm |
| Guard Material | Steel |
| Motor Type | Permanent Split Capacitor |
| Standards | cULus Listed, OSHA compliant wire guards |
| Assembled | No |
| Fan Mounting Location | Pedestal |
| Hz | 60 |
| Environmental Applications | Industrial |
| Fan Accessory Style | Standard |
| CFM Low | 2,460 |
| Bearing Type | Ball |
| Housing Material | Steel |
| Base Dia. | 27 in |
| RPM | 1100/950 |
| Wheeled Base | Stationary |
| Depth | 27 in |
| Fan Cord Length | 9 ft |
| Fan Housing Material | Steel |
| Color | Black |
| Assembly Required | Yes |
| Height Adjustment | 52 to 65 in |
| Amps | 1.8/1.4 |
| Material | Steel |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
