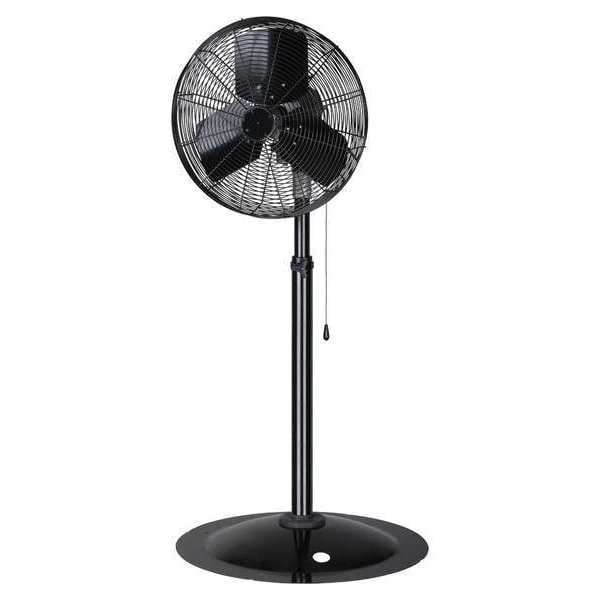

Light Duty Industrial Fan, Pedestal Mount, 20 in Blade Dia, 120V, 5,100/6,200 cfm, Oscillating
| Blade Diameter | 20 in |
|---|---|
| Oscillation | Oscillating |
| Number of Speeds | 2 |
| Voltage | 120V |
| Phase | 1 |
| Motor HP | 0.2 HP |
| Air Flow | 5,100/6,200 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 68/65 dBA |
| Item | Industrial Fan |
| Air Velocity @ 20 Ft. | 321/303 fpm |
| Wire Guard Finish | Gloss Powder Coated |
| Fan Mounting Location | Pedestal |
| NEMA Plug Configuration | 5-15p |
| Fan Style | Light Duty |
| Number of Blades | 3 |
| Environmental Applications | Industrial |
| Full Load Amps | 1.9 |
| Height | 74 in |
| Guard Material | Steel |
| Width | 22-1/4 in |
| Motor Enclosure | Totally Enclosed Air Over |
| Hz | 60 |
| CFM/Watt | 28.4/32.3 |
| Fan Accessory Style | Standard |
| CFM Low | 5,100 |
| Shaft Dia. | 12 mm |
| Thermal Protection | Automatic Reset |
| Max. Ambient Temp. | 104 deg F |
| Assembled | No |
| Air Velocity @ 60 Ft. | 135/41 fpm |
| Number of Conductors | 3 |
| Max. Depth | 27-1/4 in |
| Air Velocity @ 40 Ft. | 174/173 fpm |
| Application | Spot Cooling and People Cooling |
| Motor Type | Permanent Split Capacitor |
| Motor Insulation | Class B |
| Motor RPM | 1,100/925 RPM |
| Requires | Assembly |
| Standards | cULus Listed, OSHA compliant wire guards |
| Watts | 220/180 W |
| Bearing Type | Ball |
| Includes | Pedestal, Column and Mounting Hardware |
| Air Velocity @ 10 Ft. | 571/522 fpm |
| CFM High | 6,200 |
| Housing Material | Steel |
| Mobile/Stationary | Stationary |
| Base Dia. | 27 in |
| Color | Black |
| Amps | 2.0/1.6 |
| Assembly Required | Yes |
| Wheeled Base | Stationary |
| Fan Housing Material | Steel |
| Depth | 24 in |
| Height Adjustment | 60 to 74 in |
| Fan Cord Length | 9 ft |
| RPM | 1100/925 |
| Material | Steel |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
